7 Key Tips for Mobile Home Furnace Repair

Winter in a mobile home or manufactured park brings a unique set of challenges that traditional stick-built homeowners rarely have to contemplate. When the temperature drops below freezing, a failing heating system goes from an inconvenience to an immediate survival situation within hours. Mobile home furnaces operate under strict safety standards and physical constraints that differ significantly from standard residential HVAC systems. Understanding how to troubleshoot, maintain, and repair these specialized units is essential for protecting both your budget and your safety during the coldest months of the year.

Disclosure: As an Amazon Associate, this site earns from qualifying purchases. Thank you!

1. Test and Calibrate Your Digital Thermostat

A furnace that refuses to kick on often has nothing to do with the heating unit itself, but rather the small plastic box mounted on your wall. Mobile home walls are notoriously thin and lack the thermal mass of traditional homes, meaning drafty interior wall cavities can trick a thermostat into reading the wrong temperature. If your furnace is short-cycling or failing to start, the thermostat is the first logical place to look.

Start by removing the faceplate and checking for dust buildup, loose wiring, or corroded battery terminals. Use a handheld digital thermometer placed directly next to the thermostat to check its accuracy. A variance of more than two degrees indicates the unit needs calibration or replacement.

When replacing a thermostat in a mobile home, avoid high-end smart models unless your system has a dedicated common wire (C-wire) to provide continuous power. Most older mobile home furnaces rely on simple four-wire or two-wire configurations. Opt for a straightforward, battery-powered digital thermostat to prevent compatibility issues and system communication errors.

2. Inspect the Unique Mobile Home Blend-Air Intake

Unlike site-built houses, manufactured homes built under HUD safety codes feature a specialized fresh-air ventilation system often referred to as a Blend-Air system. This setup uses a dedicated roof intake and motorized damper to pull outdoor air directly into your furnace system. It prevents dangerous negative air pressure inside the tightly sealed envelope of a manufactured home.

If this intake becomes blocked by snow, leaves, bird nests, or debris, your furnace will starve for air. This restriction can cause the burner to starve of oxygen, leading to incomplete combustion and dangerous carbon monoxide accumulation. You must inspect the external roof cap and the interior damper assembly at the start of every heating season.

Listen closely when the furnace cycles on; you should hear the motorized damper actuator click open. If the damper remains closed, the furnace limit switch will eventually trip due to lack of airflow. Never seal off this intake to save on heating costs, as doing so violates HUD safety standards and creates a severe asphyxiation hazard.

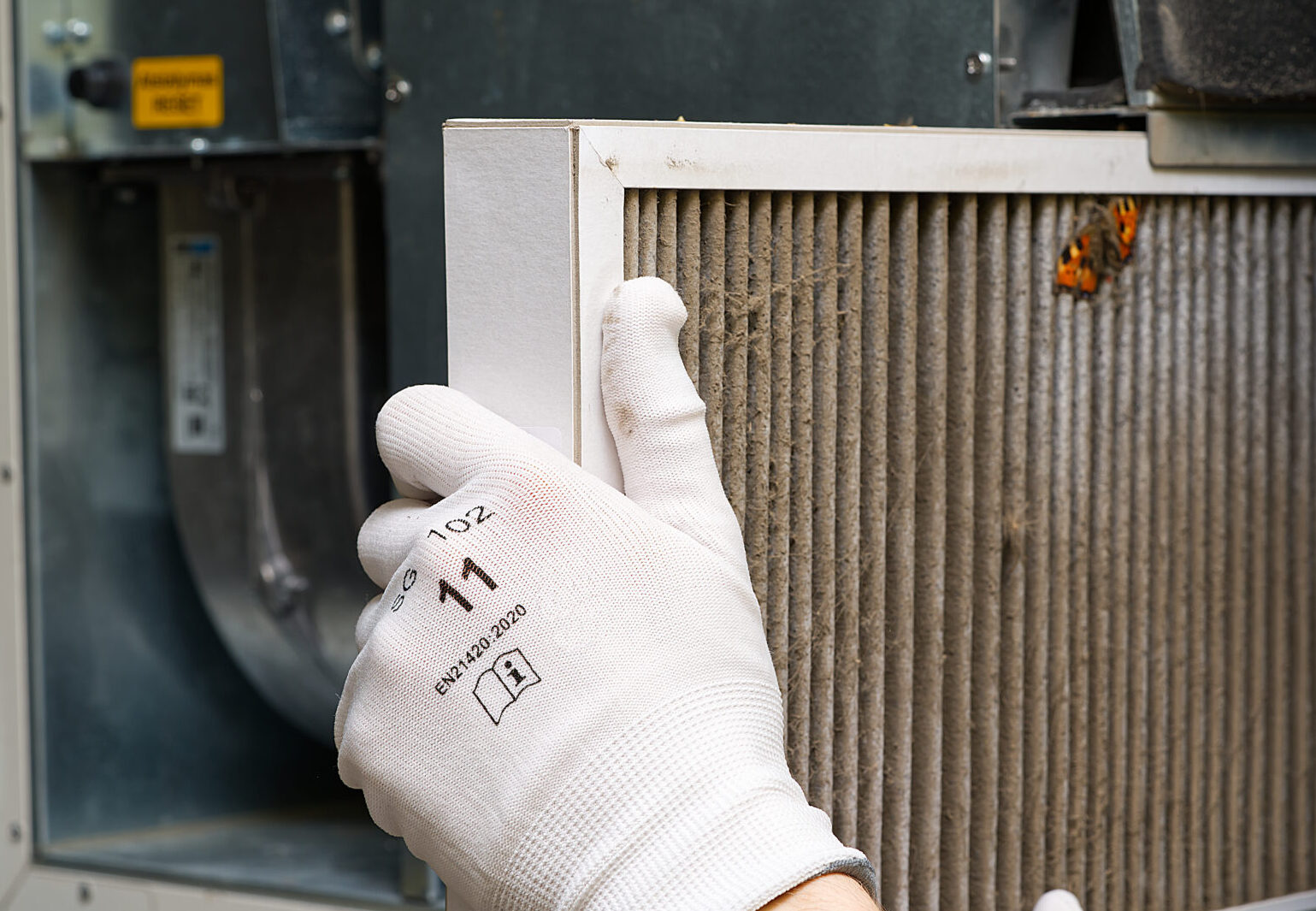

3. Replace the High-Airflow Filter Every Month

Standard residential furnaces can often tolerate cheap fiberglass filters or heavy allergen-rated pleated filters, but mobile home units are far less forgiving. Mobile home blower compartments are compact and designed to operate against very low static pressure. Using the wrong filter or letting a standard filter clog will quickly choke the system and cause the heat exchanger to overheat.

You must replace your filter every 30 days during peak heating season, especially in small-space living environments where pet dander and dust concentrate quickly. Look specifically for filters rated for high-airflow mobile home systems, which typically have a lower MERV rating (usually MERV 4 to 8). Avoid high-MERV allergen filters unless your furnace manual specifically states the blower motor can handle the restriction.

A clogged filter restricts return air, which forces the furnace limit switch to shut down the burners to prevent the heat exchanger from cracking. This cycling wears out components prematurely and drives up utility bills. Check the door grilles as well, as these serve as the primary return air path in most manufactured home layouts.

4. Clean the Thermocouple to Resolve Pilot Issues

If your older gas or propane furnace lights but goes out immediately, or if the pilot light refuses to stay lit, the culprit is almost certainly the thermocouple. This small copper rod sits directly in the pilot flame, generating a micro-voltage that tells the gas valve it is safe to remain open. Over time, carbon soot builds up on the tip, insulating it from the heat and cutting off the signal.

To clean it, shut off the gas valve and the electrical breaker to the furnace. Gently rub the tip of the thermocouple with a piece of fine-grit emery cloth or steel wool until the bare metal shines. Avoid using heavy sandpaper or files, which can damage the thin protective coating on the sensor.

If cleaning does not resolve the issue, the thermocouple must be replaced. Fortunately, this is a highly affordable, universal part that costs under $20 at most hardware stores. Keep a spare thermocouple in your tool kit, as this is one of the most common failure points during a freezing winter night.

5. Clear Dust and Debris From the Burner Orifices

Mobile home furnaces draw air from the floor level, where dust, pet hair, and carpet fibers naturally accumulate. These particulates get pulled into the burner assembly, clogging the tiny brass burner orifices. This restriction disrupts the fuel-to-air ratio, leading to inefficient combustion and soot buildup.

Inspect the burner flame while the furnace is running; it should be a crisp, steady blue. A lazy, flickering yellow flame indicates incomplete combustion, which is highly inefficient and produces excessive carbon monoxide. To fix this, you will need to clean the burner tubes and orifices.

Use a can of compressed air or a soft-bristled brush to clear away dust from the burner ports. Never insert drill bits or wire into the brass orifices, as you can easily enlarge the openings and ruin the gas flow calibration. If the corrosion is severe, the entire burner assembly must be removed for a professional solvent cleaning.

6. Seal and Insulate Under-Home Ductwork Leaks

The ductwork in a mobile home runs through the crawlspace beneath the floor, protected only by a thin layer of insulation and the fabric belly board. This makes your heating system highly vulnerable to energy loss and physical damage from pests or moisture. A single tear in the under-belly ductwork can dump up to 30 percent of your heated air directly under your home.

Slide under the home with a flashlight while the furnace fan is running to check for leaks. Feel along the metal duct trunks and the flexible branches for escaping air, paying close attention to the connections directly beneath the furnace plenum. You will also want to look for sagging belly board material, which often indicates a disconnected duct pouring hot air into the crawlspace.

Repair leaks using paint-on duct mastic and fiberglass mesh tape, which creates a permanent, airtight seal that withstands temperature swings. Never use standard silver duct tape, as the adhesive dries out and fails within a single season. Once sealed, patch any holes in the belly board with specialized poly-seal tape to restore the thermal barrier.

7. Inspect the Limit Switch for Overheating Safety

The high limit switch is a critical safety device designed to shut off the gas valve if the furnace chamber gets dangerously hot. If your blower fan runs continuously but blows cold air, or if the furnace cycles on and off rapidly, the limit switch is likely faulty or tripping. In a mobile home, this switch works harder because of the compact heat exchanger design.

You can test the switch for continuity using a basic digital multimeter. With the power off and wires disconnected, a functioning limit switch should show a closed circuit (zero ohms of resistance) at room temperature. If the meter shows an open circuit when the furnace is cool, the switch has failed and must be replaced immediately.

Always resolve the underlying cause of a tripped limit switch rather than just replacing the part. Persistent tripping is usually caused by restricted airflow, such as a clogged filter, closed floor registers, or a failing blower motor. Never bypass a limit switch to keep your furnace running, as this bypasses the primary line of defense against a catastrophic house fire.

How to Safely Source Certified Mobile Home Parts

You cannot use standard residential HVAC parts on a mobile home furnace. Mobile home heating units must comply with strict HUD safety codes, which mandate the use of zero-clearance, sealed-combustion furnaces designed for tight spaces. Installing a standard home furnace part can lead to severe system malfunction, voided insurance policies, and dangerous code violations.

When sourcing replacement parts, look for brands like Coleman, Intertherm, Revolv, or Nordyne, which dominate the manufactured housing industry. Always locate your furnace data plate—usually found inside the front cabinet door—and copy the exact model and serial numbers. Use these numbers to match parts precisely rather than relying on visual approximations.

Buy from dedicated mobile home supply warehouses or reputable online HVAC specialty retailers. Avoid generic online marketplaces where counterfeit or uncertified parts are common. Ensure any part you purchase explicitly states it is HUD-approved for manufactured housing to protect your safety and your home’s resale value.

The Realistic Cost of DIY Versus Hiring a Pro

Tackling furnace repairs yourself can save you significant money, but you must weigh the savings against the safety risks of working with high-voltage electricity and flammable gas. Simple maintenance tasks like replacing filters, cleaning burners, and taping ductwork cost very little and are highly manageable for the average homeowner. A DIY filter replacement costs under $15, while a roll of duct mastic and tape runs about $30.

For component replacements like thermocouples, igniters, or limit switches, DIY parts cost between $15 and $80. If you hire a professional technician to replace these same parts, you can expect to pay a diagnostic fee of $80 to $150, plus labor rates ranging from $100 to $200 per hour. A simple repair that costs you $40 in parts can quickly turn into a $350 professional invoice.

However, if the heat exchanger is cracked or the main control board is fried, the cost dynamics shift. A replacement heat exchanger or blower motor can cost $300 to $600 for parts alone, and the installation is highly complex. In these scenarios, paying for professional installation is a wise investment, as a mistake can result in gas leaks or a complete system failure.

Three Critical Safety Signs That Require an Expert

While basic maintenance is well within the reach of a handy homeowner, certain symptoms indicate a life-threatening hazard that requires immediate professional intervention. The first is a distinct sulfur or rotten-egg odor, which indicates a natural gas or propane leak. If you smell this, evacuate the home immediately and call your gas utility provider from a safe distance outside.

The second warning sign is a cracked heat exchanger, which allows deadly carbon monoxide to mix directly with the air blowing into your living space. Look for excessive soot buildup around the furnace cabinet, or a flame that dances wildly when the blower fan turns on. If your carbon monoxide detector sounds, or if household members experience unexplained headaches, nausea, or dizziness, shut off the furnace and call an expert.

Finally, if your furnace is rumbling, booming, or making loud screeching noises on startup, do not attempt to run it. These sounds often indicate a failing blower wheel, a cracked heat exchanger, or delayed ignition, where gas builds up before igniting violently. These issues require specialized diagnostic tools and professional training to resolve safely.

Taking control of your mobile home furnace maintenance is one of the smartest ways to ensure a safe, warm, and cost-effective winter season. By understanding the unique mechanics of your manufactured housing system, you can handle minor repairs with confidence and recognize when it is time to call in a professional. Keep your filters fresh, inspect your under-belly ductwork regularly, and never compromise on safety. A little proactive preparation today will keep the cold at bay and protect your alternative lifestyle investment for years to come.
