6 Best Garmin Open Array Radars For Offshore Fishing

Navigating the open ocean requires absolute confidence in your marine electronics, especially when tracking weather or searching for distant game fish. For those living on the water or spending long days offshore, a high-performing radar system is the ultimate tool for both safety and tactical fishing success. These Garmin open array radars offer the power, resolution, and advanced features needed to cut through heavy fog, spot birds at extreme distances, and keep your vessel safe in any conditions.

Disclosure: As an Amazon Associate, this site earns from qualifying purchases. Thank you!

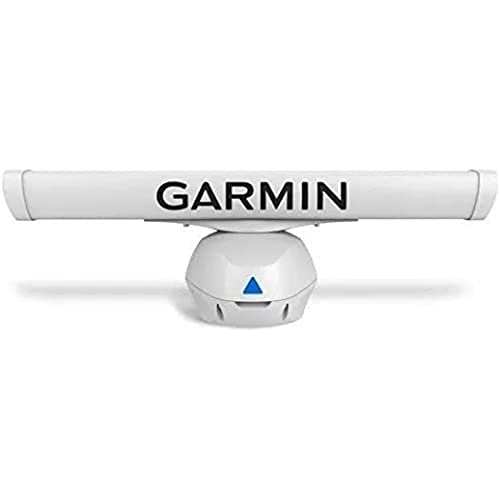

Garmin GMR Fantom 54: Best Overall Choice

This 50-watt solid-state radar strikes the perfect balance between raw power, physical weight, and electrical efficiency. It delivers exceptional target separation using a four-foot antenna array, which makes it ideal for mid-sized offshore center consoles and long-range cruisers. Because it uses solid-state technology rather than a traditional magnetron, it starts up instantly without any warm-up period.

The standout feature of this unit is Garmin MotionScope technology, which uses the Doppler effect to detect and highlight moving targets in different colors. Targets moving toward the vessel appear in red, while those moving away turn green. This instant visual cue removes the guesswork when navigating high-traffic shipping lanes or busy harbor channels at night.

For boaters operating with limited battery banks or compact solar-charging setups, the lower power draw of this 50-watt system is a major advantage. It provides the high-end resolution of an open array without draining your house batteries like older, power-hungry magnetron units. If you want a dependable, modern radar that handles ninety percent of offshore scenarios flawlessly, this is the system to mount on your hardtop.

Garmin GMR Fantom 124: Best for Rough Seas

When the weather turns sour and heavy sea spray constantly washes over the bow, lesser radars struggle to separate true targets from water clutter. This unit solves that problem by packing 120 watts of solid-state power behind a four-foot array. The extra wattage allows the radar beam to punch through heavy rain, thick fog, and dense sea mist with ease.

This increased power does not mean a sacrifice in close-range detail. The pulse compression technology ensures that even while scanning at high power for distant storms, the unit still resolves nearby obstacles like crab pots or channel markers. The high-power output ensures consistent target tracking even in turbulent, foaming seas.

If your offshore excursions regularly take you into unpredictable open waters or through rough coastal inlets, this model offers the extra muscle you need. It is designed specifically for anglers who refuse to let a little foul weather keep them at the dock. Choose this model if you need maximum environmental penetration without moving up to a massive six-foot antenna.

Garmin GMR Fantom 254: Best High-Power Radar

For those who demand the absolute pinnacle of solid-state performance, this unit delivers an astonishing 250 watts of power. It represents the top tier of Garmin solid-state technology, offering unparalleled target definition at extreme ranges up to 96 nautical miles. It is built to handle the demanding needs of large sportfishing yachts and serious commercial vessels.

The extreme power output allows you to detect subtle weather changes and distant shoreline features long before they are visible to the naked eye. It also provides incredibly sharp imagery of small targets, such as low-profile kayaks, wooden debris, or distant birds, even in heavy chop. No other Garmin solid-state radar offers this level of raw range and target clarity.

However, this level of performance requires a robust electrical system and a vessel large enough to support the physical weight of a heavy open array. If you operate a high-end sportfisher or a large catamaran and want the best technology money can buy, this is your radar. It is a serious investment for serious offshore navigators who refuse to compromise on situational awareness.

Garmin GMR 1224 xHD2: Best Long-Range Detail

While solid-state technology is incredibly popular, traditional magnetron radars still hold a distinct advantage for raw, long-range imaging. This unit utilizes a powerful 12 kW magnetron to deliver classic high-definition performance across a four-foot array. It excels at drawing sharp, high-contrast outlines of distant islands, reef edges, and large shipping vessels.

The high-definition digital processing on this unit provides exceptional target separation, allowing you to distinguish between two closely spaced targets at a distance. It features a dual-radar support option, allowing you to run a split-screen view on your chartplotter with one side set to close-range navigation and the other scanning the horizon.

This model is perfect for long-distance cruisers, offshore trawlers, and traditionalists who prefer the raw power and proven reliability of a magnetron system. It is particularly well-suited for transoceanic crossings where identifying landmasses and shipping traffic at maximum range is the primary goal. If raw distance and classic, razor-sharp outlines are your priorities, this is the unit for your mast.

Garmin GMR Fantom 56: Best for Coastal Use

Moving up to a six-foot array completely changes the radar beam dynamics, narrowing the horizontal beam width to an incredibly tight 1.25 degrees. This model combines that ultra-narrow beam with a highly efficient 50-watt solid-state transmitter. The result is a radar that offers surgical precision when navigating tight coastal waterways, narrow inlets, and crowded mooring fields.

The narrower beam width prevents target merging, meaning two boats anchored close together will appear as two distinct targets rather than one large blur. This level of detail is a massive safety advantage when navigating in thick coastal fog or entering unfamiliar harbors after dark. You get exceptional detail without the massive weight or power consumption of higher-wattage units.

• Beam Width: 1.25 degrees for incredible target separation
• Power Output: 50 Watts (equivalent to a 6 kW magnetron)
• Array Size: 6-foot length for maximum horizontal resolution
• Best For: Navigating complex coastlines and busy harbors

For boaters who spend their time running along complex coastlines, island-hopping, or fishing near busy shipping lanes, this system is tough to beat. It requires a hardtop or arch wide enough to accommodate the wider rotational swing of a six-foot array. If you have the physical space on your vessel, the jump in resolution is well worth the footprint.

Garmin GMR Fantom 126: Best for Pro Anglers

This radar represents the ultimate tournament weapon, combining a massive six-foot array with 120 watts of solid-state power. This combination delivers an incredibly narrow horizontal beam width along with the muscle needed to scan far beyond the horizon. It is designed specifically for competitive anglers who need to find the fish before the rest of the fleet does.

The primary advantage for pro anglers is the ability to locate working birds at distances that other radars simply cannot resolve. Finding birds means finding bait, which ultimately leads to finding target species like tuna, marlin, and mahi-mahi. This unit allows you to spot small flocks of birds miles away, giving you a massive head start on the water.

Because it is a solid-state unit, it also offers the full suite of Garmin advanced features, including MotionScope, target tracking, and dual-range capabilities. This is a large, heavy system that demands a sturdy, well-engineered hardtop or tower. If you are a professional guide, a tournament angler, or an offshore explorer who demands absolute maximum range and detail, this is the definitive choice.

How to Choose the Right Radar Power Output

Selecting the correct power output for your vessel is not just about buying the most expensive option on the shelf. You must balance your navigational needs with the physical and electrical limitations of your boat. Traditional magnetron radars are rated in kilowatts (kW), while modern solid-state radars are rated in watts (W), but due to pulse compression, a 50W solid-state unit can perform similarly to a 4 to 6 kW magnetron.

Consider your onboard power budget, especially if you spend days off the grid without running a generator. Solid-state radars draw significantly less power during operation and require zero warm-up time, making them highly efficient for sailboats, trawlers, and smaller center consoles. Magnetron units, while highly effective for long-range target painting, draw more current and put a heavier load on your alternator or house battery bank.

Your typical cruising and fishing distances should also dictate your power choice. If you rarely venture more than 15 miles offshore, a 50W solid-state unit will provide more than enough range and detail. If you regularly run 50 to 100 miles into the canyon, upgrading to a 120W or 250W unit becomes a matter of safety, allowing you to track distant weather systems and find birds at extreme distances.

Key Mounting and Wiring Tips for Your Boat

Installing an open array radar requires careful planning to ensure both structural safety and optimal electronic performance. Because these units are heavy and catch a significant amount of wind, they must be mounted to a structurally reinforced hardtop, radar arch, or custom tower. Always use marine-grade stainless steel hardware and backing plates to distribute the load evenly across the mounting surface.

The angle of the radar scanner is critical to its performance when the boat is running. Most boats ride with the bow slightly elevated when on plane, which means a flat-mounted radar will end up pointing towards the sky behind you. To correct this, use a pre-fabricated radar wedge or shim to tilt the scanner down by 4 to 6 degrees, ensuring the beam remains parallel to the water when cruising.

• Use a mounting wedge: Compensates for bow rise to keep the radar beam level on plane.
• Run heavy-gauge power wire: Prevents voltage drop over long cable runs from the battery bank.
• Avoid physical obstructions: Mount the array high enough to clear searchlights, antennas, and satellite domes.
• Isolate radar cabling: Keep data and power cables away from VHF antenna lines to prevent signal interference.

Voltage drop is the single most common cause of erratic radar performance or unexpected shutdowns. Always run the manufacturer-recommended wire gauge for the power supply line, especially if the run from the battery switch to the hardtop is long and winding. Additionally, ensure the rotating array has a completely clear path, free from interference by nearby outriggers, GPS antennas, or fishing rods stored in rocket launchers.

Using Birds Mode to Locate Offshore Fish

For offshore anglers, an open array radar is far more than a navigation safety tool; it is a highly effective fish finder. Marine birds, such as shearwaters and frigatebirds, congregate in large numbers over schools of baitfish that are being pushed to the surface by predatory game fish. By locating these bird flocks from miles away, you can pinpoint active fishing zones without wasting fuel searching blank water.

Garmin radars feature a dedicated Auto Bird Mode that optimizes the radar settings specifically for this task. The system automatically adjusts the gain, sea clutter, and rain clutter controls to filter out wave tops while highlighting the small, moving targets of birds hovering above the water. This mode allows you to see bird activity long before it is visible through binoculars.

To get the most out of this feature, it helps to understand how target size and movement appear on your screen. Bird flocks will often appear as soft, flickering, irregular echoes rather than the hard, solid returns of a boat or buoy. By combining Bird Mode with MotionScope, you can even determine which direction the birds are traveling, allowing you to intercept the feeding school more efficiently.

Maintenance Tips for Marine Open Arrays

The harsh marine environment is incredibly unforgiving on exposed electronics, making regular maintenance essential for the longevity of your open array. After every trip into saltwater, make it a habit to rinse the entire radar unit with clean, low-pressure fresh water. Never use a high-pressure washer directly on the seals or the rotary joint, as this can force moisture inside the housing.

Periodically inspect the physical mounting bolts and the electrical connections inside the hardtop or console. Look for any signs of corrosion, loose hardware, or wear on the heavy-duty power and data cables where they pass through metal or fiberglass bulkheads. Applying a light coat of marine-grade anti-seize to the mounting bolts can prevent them from seizing over time due to galvanic corrosion.

Finally, keep your chartplotter and radar software updated to the latest versions released by Garmin. These updates often contain crucial performance enhancements, bug fixes, and improved target-filtering algorithms. A well-maintained radar system will provide reliable service for years, ensuring you always find your way back to port safely.

Investing in a high-quality Garmin open array radar transforms your offshore experience by providing unmatched safety, navigation clarity, and fish-finding capability. By matching the right power output and array size to your specific vessel and fishing style, you can head out past the horizon with complete peace of mind, knowing you have the ultimate eye on the sky and the water.
