6 Best Open Array Radars For Coastal Navigation

Navigating a tight coastline at dusk or through a sudden blanket of fog demands more than just basic GPS coordinates and gut instinct. For those living aboard or cruising extensively in off-grid marine environments, a high-performance open array radar is the ultimate insurance policy against unseen hazards. Selecting the right system requires balancing power constraints, mounting limitations, and real-time imaging needs to ensure safety on the water.

Disclosure: As an Amazon Associate, this site earns from qualifying purchases. Thank you!

Garmin GMR Fantom 54: Best for Target Tracking

When navigating busy coastal waterways, identifying moving hazards quickly is a matter of survival. The Garmin GMR Fantom 54 excels here by utilizing MotionScope technology, which leverages the Doppler effect to highlight moving targets in contrasting colors. Moving vessels are instantly color-coded based on whether they are closing in or moving away, stripping away the guesswork during high-traffic transits.

This solid-state radar delivers 50 watts of output power, which rivals the target separation of older, high-draw magnetron systems while consuming far less energy. The 4-foot open array provides a narrow 1.8-degree beamwidth, allowing you to distinguish between two closely spaced targets rather than seeing them as a single confusing blob. It is a highly efficient design that fits beautifully into modern, power-conscious marine setups.

For boaters who frequently navigate crowded harbors or active shipping lanes, this unit is an absolute game-changer. However, if your cruising is limited to wide-open, empty waters where target density is low, the advanced tracking features might represent unnecessary overhead. Buy the Fantom 54 if real-time collision avoidance in dense traffic is your absolute highest priority.

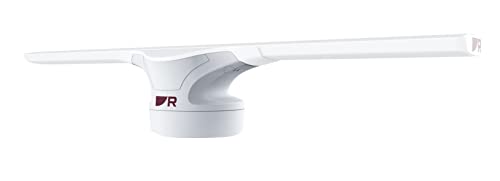

Raymarine Cyclone Pro: Best in Heavy Weather

Rough coastal weather puts immense physical strain on marine hardware, making structural integrity just as important as electronic performance. The Raymarine Cyclone Pro stands out with its low-profile, aviation-inspired design engineered to withstand wind speeds up to 100 knots. This rugged construction ensures the radar continues rotating and delivering critical data when gale-force winds and driving rain force other systems to struggle.

Under the hood, this unit utilizes 110 watts of transmitter power and advanced CHIRP pulse compression to slice through heavy precipitation and sea clutter. The resulting imagery maintains high-target definition even when waves are crashing over the bow. It also features a rapid 60 RPM rotation speed, providing near-instantaneous screen updates when quick maneuvering is required.

This level of durability and speed does come with a higher price tag and a slightly heavier physical footprint on your hardtop or arch. If your plans involve fair-weather coastal cruising or seasonal weekend trips, the Cyclone Pro is likely over-engineered for your needs. Choose the Cyclone Pro if your journey takes you into unpredictable, high-wind environments where equipment failure is not an option.

Simrad HALO 3000: Best High-Definition Clarity

Clear situational awareness relies on high-resolution imaging that can differentiate between a tiny channel marker, a kayak, and a rocky outcrop. The Simrad HALO 3000 achieves this level of clarity through its impressive 130-watt solid-state transmitter, delivering unmatched detail at both short and long ranges. This system effectively bridges the gap between commercial-grade power and recreational efficiency.

A standout feature is the dual-range operation, which allows you to monitor distant weather systems up to 72 nautical miles away while simultaneously keeping an eye on immediate hazards in your path. The extreme target separation ensures that even in heavy rain, the screen remains clean and easy to interpret. For anglers and long-distance cruisers, the dedicated Bird Mode helps locate distant flocks of birds, signaling active fishing grounds or bait schools.

The main trade-off here is the power consumption associated with a 130-watt solid-state transmitter, which demands a robust electrical system. Small-scale cruising boats with limited battery capacity may find this unit puts too much strain on their off-grid reserves. The HALO 3000 is the ultimate choice for those who demand uncompromising visual definition and have the battery bank to support it.

Furuno DRS6A-NXT: Best for Serious Navigators

Professional mariners have long relied on Furuno for its legendary reliability and no-nonsense user interfaces. The Furuno DRS6A-NXT continues this legacy by offering a solid-state open array designed for serious, long-distance navigators who treat their boat as a primary home. Its Target Analyzer function automatically changes the color of targets approaching your vessel, providing instant situational awareness without complex menu diving.

Furuno utilizes proprietary RezBoost technology, which sharpens the radar beam to achieve the equivalent detail of a much larger physical array. This means you get the performance of a massive commercial antenna within a more manageable footprint that fits standard coastal cruisers. The solid-state design eliminates warm-up times, ensuring the radar is ready to perform the second a fog bank rolls in.

While the system is incredibly robust, the interface has a steeper learning curve than some of its more consumer-oriented competitors. It integrates best within a complete Furuno NavNet ecosystem, which can make a full electronics refit quite expensive. If you are a dedicated offshore cruiser who prioritizes commercial-grade reliability and precise manual tuning over flashy graphics, the DRS6A-NXT is your best fit.

B&G HALO 2000: Best for Coastal Sailing

Sailing vessels present unique navigational challenges, including limited mast space, heel angles, and a strict need to conserve electrical power. The B&G HALO 2000 is engineered specifically to address these sailing dynamics, offering a highly efficient 50-watt pulse compression radar. It integrates seamlessly with B&G’s sailing-specific chartplotters, overlaying wind data, laylines, and radar targets on a single screen.

This unit features smart power management modes that allow sailors to drop the power consumption significantly when cruising under sail. Despite the lower power draw, it still delivers exceptional target separation and a range of up to 72 nautical miles, giving you plenty of warning for approaching squalls. The compact array options make it easier to mount on a mast or a dedicated transom pole without disrupting the boat’s balance.

Powerboats or fast trawlers might not fully utilize the sailing-specific software integration that makes this unit so valuable. For those vessels, other multi-purpose radars might offer better value for the money. If you navigate a coastal sailing vessel and need a radar that respects your battery bank while offering dedicated sailing integration, the B&G HALO 2000 is the clear winner.

Garmin GMR 2526 xHD2: Best Long-Range Power

For those who venture far off the grid or navigate remote coastlines, seeing obstacles at extreme distances is crucial. The Garmin GMR 2526 xHD2 uses a powerful 25 kW magnetron to deliver an impressive 96-nautical-mile detection range. This traditional high-power approach excels at detecting distant landmasses, offshore oil platforms, and severe weather fronts long before they appear on standard radars.

The 6-foot open array provides an incredibly narrow 1.1-degree beamwidth, offering exceptional target resolution at extreme distances. This helps you identify small openings in distant barrier islands or track remote weather systems with absolute precision. It also features a dual-radar support option, allowing you to run this long-range beast alongside a smaller dome for close-quarters work.

The main tradeoff with a 25 kW magnetron is the high power consumption and the physical wear on the system over time compared to solid-state alternatives. This unit is physically massive and demands a sturdy, well-reinforced mounting platform. Choose the GMR 2526 xHD2 if your coastal navigation regularly takes you far into remote areas where maximum range is your primary safety net.

Managing Power Draw on Your Off-Grid Boat

Living off the grid on a boat requires a strict accounting of every single amp-hour consumed by your electronics. Open array radars are notoriously power-hungry devices, especially older magnetron models that draw significant current just to stay warmed up. Modern solid-state radars have revolutionized this dynamic by eliminating the warm-up cycle and drawing power only when transmitting.

To manage this load effectively, you should utilize the radar‚Äôs standby or “eco” modes whenever you are in open, low-traffic waters. Setting the radar to scan periodically‚Äîsuch as a 10-rotation sweep every five minutes‚Äîcan cut your overall power consumption by up to 80 percent. This strategy keeps you aware of changing conditions without draining your house battery bank prematurely.

Additionally, ensure your marine DC-to-DC converters and wiring are properly sized to handle the peak transmission spikes of high-power units. Voltage drops caused by undersized wiring can cause your radar to reboot unexpectedly right when you need it most.

To optimize your electrical system, implement these key power-saving strategies: * Monitor your battery state of charge closely when running the radar alongside high-draw devices like refrigeration. * Utilize timed transmit features to program the system to sleep during long, clear ocean passages. * Upgrade to lithium batteries to maintain a stable voltage under the sudden load spikes common in high-power marine electronics.

Choosing the Right Mounting Height for Range

The maximum range of any marine radar is limited by the physical curvature of the Earth and the height of the antenna. Mounting your open array too low will severely limit your long-range vision, leaving you blind to distant weather or low-profile islands. Conversely, mounting it too high increases the boat’s rolling motion, which can cause the radar beam to overshoot nearby targets in rough seas.

A common formula to calculate the radar horizon in nautical miles is 1.22 times the square root of the antenna height in feet. For example, an antenna mounted 16 feet above the water has a theoretical horizon of roughly five nautical miles for sea-level targets. To see further, you must rely on the height of the target itself, such as a tall cliff or a larger ship.

On a coastal trawler or sailboat, a balanced mounting height of 15 to 20 feet usually provides the best compromise between range and stability. Mounting on a heavy-duty arch or a mast platform requires robust structural support to handle the physical leverage of a spinning 4-to-6-foot array.

To achieve the perfect balance of height and stability, keep these physical considerations in mind: * Consider a gimballed mount to keep the radar beam level with the horizon when your boat is heeling or pitching. * Account for vertical beamwidth to compensate for vessel motion in rough coastal waters. * Keep the path clear by mounting the array high enough to avoid scanning directly into flybridge biminis or outriggers.

How to Tune Your Radar for Coastal Clutter

Coastal navigation brings your vessel close to beaches, seawalls, docks, and waves, all of which reflect radar signals and create visual noise called clutter. If your screen is filled with bright, flashing spots, identifying actual hazards like channel markers or small boats becomes nearly impossible. Learning to tune your gain, sea clutter, and rain clutter controls is essential for clean imaging.

Most modern radars feature highly capable automatic tuning modes, but these algorithms often over-filter the signal in tight spaces, accidentally erasing small targets. Manual adjustment of the “Gain” control allows you to increase sensitivity until you see a light speckling on the screen, ensuring you aren’t missing faint targets. Next, adjust the “Sea Clutter” control to suppress reflections from nearby wave crests without wiping out the targets immediately around your bow.

Rain clutter controls should be used sparingly, as they work by reducing the intensity of all returns, which can easily hide a small fiberglass boat. In tight channels, turning down the range scale to under 1.5 miles will automatically increase detail and help you distinguish between a shoreline and a moored boat.

When manually adjusting your radar for tight coastal channels, follow this tuning sequence: * Adjust gain first by increasing it manually until a light background speckle appears, then back it off slightly. * Use sea clutter controls progressively to eliminate wave reflections near the center of the screen without wiping out close targets. * Practice on clear days to visually correlate physical landmarks with their specific radar signatures.

Radar Radiation Safety and Maintenance Tips

While marine radar is an invaluable safety tool, it emits electromagnetic radiation that requires careful installation and operational awareness. Traditional magnetron radars emit high-power, pulsed microwaves that can be harmful to human tissue at close range over extended periods. Solid-state radars, on the other hand, emit significantly lower peak power, making them much safer to work around on a compact vessel.

Regardless of the technology, you should never look directly into a spinning radar array at eye level while it is transmitting. Ensure the array is mounted well above any areas where passengers or crew might stand, sit, or work. Establishing a strict “radar off” policy whenever anyone is working on the mast or flybridge arch is a vital safety practice.

Physical maintenance of an open array is relatively simple but must not be ignored in harsh marine environments. Regularly inspect the mounting bolts for signs of galvanic corrosion, especially when mating aluminum mounts to stainless steel hardware. Wipe down the plastic face of the array with fresh water and a mild detergent to prevent salt crust buildup, which can degrade signal performance over time.

To keep your system running safely and efficiently, add these quick checks to your routine: * Check internal belts and gears for unusual squealing or grinding noises during rotation. * Inspect cable entry points to ensure waterproof glands remain tight and free of cracks. * Verify the ground connection to protect your sensitive electronics from static buildup and lightning strikes.

Investing in a high-quality open array radar transforms coastal navigation from a stressful guessing game into a controlled, predictable journey. By understanding your vessel’s power limits, optimizing your mounting setup, and mastering the tuning controls, you ensure safety and peace of mind on every voyage.
