4 Mobile Home Supports RV Owners Need for Stability

Stepping into a stationary RV only to feel the entire chassis shudder with every footstep is a quick reality check for anyone transitioning to alternative living. While standard scissor jacks work for a weekend camping trip, they are not designed to support a multi-ton home long-term without wearing out the suspension and causing structural fatigue. True structural stability requires borrowing heavy-duty support methods from the manufactured housing industry to secure your rig against wind, soil shifting, and daily foot traffic. Securing a stationary rig requires looking past temporary camping gear and investing in robust foundation supports built for permanent placement.

Disclosure: As an Amazon Associate, this site earns from qualifying purchases. Thank you!

1. Heavy-Duty Steel Jack Stands: Best for Frame Load

Standard RV stabilizers only stop bounce; they do not carry the actual weight of the vehicle. For true long-term support, heavy-duty steel jack stands must be placed directly under the main I-beams of the chassis. These stands transfer the structural load off the tires and suspension, preventing flat spots and spring fatigue.

Look for jack stands rated for at least 10,000 to 12,000 pounds per pair to ensure a safe margin of error. Steel jack stands feature a wide base plate and a pin-lock or threaded adjustment system that will not slip under pressure. Placing these under the strongest parts of the frame turns a bouncy house on wheels into a solid, motionless platform.

The key tradeoff here is rigidity versus mobility. Setting up heavy-duty steel jack stands takes time and physical effort, making them impractical for weekend travelers. However, for a rig parked in one spot for six months or longer, this setup is essential to protect the integrity of your slide-outs and plumbing connections.

2. Concrete Pier Blocks: Rock-Solid Base for Mud

Parking an RV on bare dirt or grass is a recipe for gradual sinking, especially during the spring thaw or heavy rain seasons. Concrete pier blocks, often used in mobile home setups, provide a massive footprint that distributes weight across a wider surface area. This prevents your jacks from burrowing into the earth and throwing your entire home out of level.

These blocks typically feature a recessed top that perfectly cradles wood blocks or metal jack heads. They are heavy, clocking in at around 30 to 50 pounds each, which makes them a purely stationary upgrade. If your pad consists of soft clay, sand, or uncompacted topsoil, these blocks are non-negotiable for safety.

A common pitfall is placing metal jack stands directly onto concrete, which can cause cracking and dangerous slippage. Always place a pressure-treated wood buffer block between the steel jack head and the concrete pier. This small barrier absorbs micro-movements and prevents catastrophic structural shifts when the ground freezes and thaws.

3. Tri-Frame Stabilizers: Stopping All Side Sway

Vertical jack stands are excellent for weight bearing, but they do very little to stop lateral, or side-to-side, motion. Every time someone walks down the hallway or a gust of wind hits the sidewall, the rig will sway on its tall jacks. Tri-frame stabilizers solve this by creating a rigid triangular brace between the frame and the ground.

These systems use locking telescoping arms that attach to the frame and anchor to a wide footpad. By triangulating the support, they eliminate the pivoting motion that standard jacks allow. The difference is immediately noticeable, turning a spongy floor feeling into a solid, cabin-like foundation.

When selecting a tri-frame stabilizer, look for models that mount directly to the kingpin of a fifth-wheel or the front frame of a travel trailer. These areas experience the highest amount of leverage and movement. Eliminating sway at these key junctions prevents long-term stress fractures on your RV’s aluminum or wood wall studs.

4. Hurricane Tie-Down Straps: Vital Wind Protection

An RV has a high profile and a relatively light weight, making it highly vulnerable to high winds. Unlike traditional homes anchored to concrete foundations, a strong gust can literally tip an unsecured travel trailer or fifth wheel. Hurricane tie-down straps anchor your chassis directly to the earth, providing essential downward tension.

These systems utilize heavy-duty steel augers screwed deep into the ground, connected to high-tensile steel strapping wrapped around the chassis frame. This setup is often legally required by local zoning boards if you plan to classify your park model or travel trailer as a permanent dwelling. Check local building codes, especially in coastal zones or open plains, where wind load requirements are strictly enforced.

Installing these straps requires specific tools, including a tensioning tool to tighten the steel bands. It is a labor-intensive process that requires testing your soil type to ensure the auger anchors will actually hold. The peace of mind during a severe storm, however, makes this one of the most critical safety upgrades you can perform.

Prep the Ground First: Compacting Soil Under Jacks

No support system can compensate for shifting, uncompacted soil beneath it. Before you set up a single jack or block, you must clear the area of organic debris, sod, and loose topsoil. Leaving grass or roots under your supports leads to rot and rapid settling within just a few weeks of parking.

Excavate down to the stable subsoil layer and backfill the area with crusher run gravel or dense grade aggregate. Use a hand tamper or rental plate compactor to pack the gravel down until it forms a hard, impermeable pad. This layer sheds water away from your support points and prevents water from pooling around your jacks.

If you are on a sloped site, level the ground by cutting into the slope rather than building it up with loose dirt. Built-up dirt will erode quickly under heavy rain, causing your jacks to slip. Investing a weekend into proper ground preparation saves you from the grueling task of re-leveling a sinking 15,000-pound rig mid-winter.

How to Calculate Your Setup’s Real Weight Capacity

Never rely on the dry weight printed in your RV’s owner’s manual when calculating your foundation needs. That number excludes water, propane, batteries, and the hundreds of pounds of gear you bring aboard for full-time living. You must calculate your Gross Vehicle Weight Rating (GVWR) plus a safety margin to determine the load your jacks must bear.

To find your true weight, take your rig to a certified CAT scale at a truck stop when it is fully loaded for living. Once you have the total weight, distribute that load across your planned support points, keeping in mind that the tongue or kingpin carries a significant percentage. Here is a quick reference framework for choosing support capacities:

• Travel Trailers (under 28 feet): Minimum support capacity of 15,000 pounds total.
• Fifth Wheels & Large Travel Trailers: Minimum support capacity of 25,000 pounds total.
• Park Models & Destination Trailers: Minimum support capacity of 35,000 pounds total.

Always over-engineer your support system by rating it for at least 1.5 times the actual weight of your loaded rig. This safety margin accounts for dynamic loads, such as heavy snow accumulation on the roof or wind shear pressing down on one side of the vehicle. Underestimating weight leads to bent jacks, cracked frames, and compromised slide-outs that will no longer seal properly.

Step-by-Step Installation for Long-Term Parking

Installing a permanent support system requires a methodical approach to avoid damaging your RV’s chassis or throwing off its alignment. Start by parking the rig on your prepped pad and leveling it using the onboard leveling system or ramp blocks. Once the rig is perfectly level, slide your concrete pier blocks into their designated positions under the main frame rails.

Place your pressure-treated wood blocks on top of the piers, and then position your heavy-duty steel jack stands. Slowly extend the jack stands until they make firm contact with the wood blocks, then use a hydraulic bottle jack to lift the frame slightly—no more than a quarter-inch—to transfer the weight onto the new stands. Never lift the tires completely off the ground unless you are performing axle maintenance, as the tires provide crucial secondary stability.

Repeat this process at all four corners, working diagonally to distribute the weight evenly and prevent twisting the frame. Once all stands are set, install your tri-frame stabilizers and hurricane tie-down straps to lock the chassis in place. Walk inside the rig and check your level again; minor adjustments may be needed as the suspension settles under the new load distribution.

Dangerous Mistakes: Wood Rot and Improper Blocking

The most common and costly mistake in stationary setups is using cheap, untreated scrap wood for blocking. Untreated wood acts like a sponge, drawing moisture from the ground and rotting from the inside out within a single season. When rotted wood collapses under load, the sudden drop can bend your RV’s frame and rupture your gray or black water plumbing.

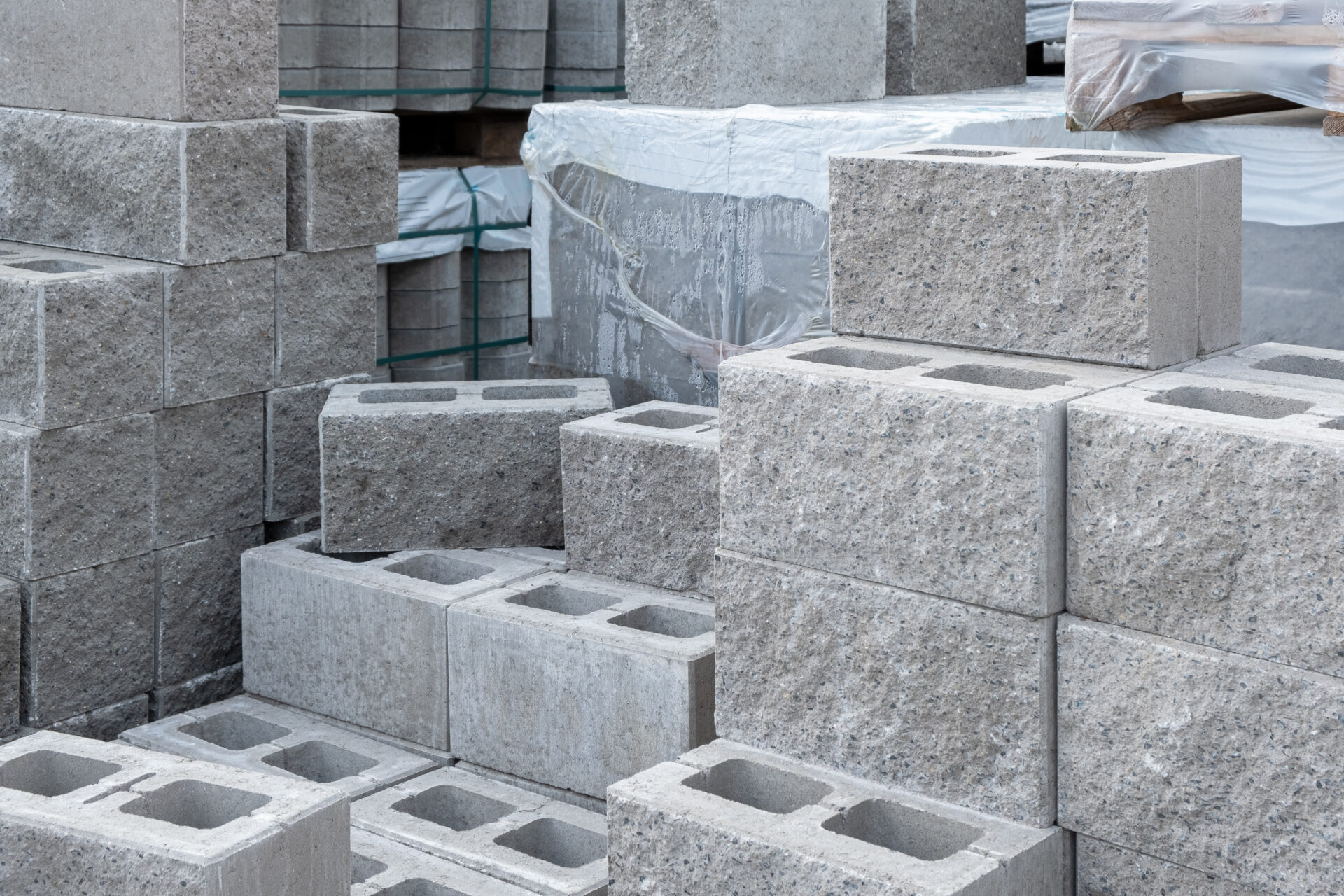

Always use Category UC4B pressure-treated lumber, which is rated for direct ground contact. Another critical error is stacking cinder blocks vertically or placing load on the hollow cores. Cinder blocks are brittle and have incredibly low tensile strength when loaded incorrectly; they can shatter without warning under the weight of an RV.

Additionally, placing jacks directly onto the RV’s bumper or slide-out mechanisms will cause catastrophic structural damage. Only support the rig by its main steel chassis frame, specifically where the manufacturer has designated jack points. Misplacing a jack can warp the slide-out tracks, leading to expensive water leaks and slide motor failures that are incredibly difficult to repair.

Cost Breakdown: What You Will Actually Spend on Gear

Upgrading your RV for long-term stability is an investment in your safety and the longevity of your home. Cutting corners on cheap gear usually leads to buying the correct equipment anyway after the first windstorm or structural shift. Budgeting for high-quality, durable gear ensures your setup remains safe and level for years to come.

Here is a realistic breakdown of what you can expect to spend to properly secure a standard 30-foot travel trailer:

• Heavy-Duty Steel Jack Stands (4-pack): $120 – $180
• Concrete Pier Blocks (6 blocks): $60 – $90
• Tri-Frame Stabilizers (front and rear set): $250 – $350
• Hurricane Tie-Down Straps & Ground Anchors: $100 – $150
• Pressure-Treated Lumber & Gravel Prep: $80 – $120
• Total Expected Outlay: $610 – $890

While spending nearly $900 on stabilization gear might seem steep compared to a $50 set of plastic wheel chocks, it is a fraction of the cost of frame repair. A single warped chassis or cracked fiberglass siding panel can easily cost upwards of $5,000 to fix. View this expense as foundational insurance for your mobile asset.

Travel Weight Trade-Offs for Stationary Upgrades

If your lifestyle involves moving every few weeks, carrying heavy-duty stationary supports is highly impractical. Steel jacks, concrete blocks, and heavy timber add hundreds of pounds of cargo weight, rapidly eating into your tow vehicle’s payload capacity. Every extra pound reduces your fuel mileage and places additional wear on your engine, transmission, and brakes.

For highly mobile travelers, lightweight aluminum stack jacks and slide-out support bars offer a compromise, though they lack the absolute rigidity of a stationary setup. If you plan to transition between mobile and stationary living, you must decide whether to store your heavy gear or sell it and repurchase it at your next long-term destination.

Dedicated stationary homesteaders do not need to worry about this weight penalty, allowing them to choose the heaviest, most robust options available. Assess your actual travel plans honestly before purchasing; do not buy gear meant for a permanent park model if you intend to explore state parks every weekend.

Ultimately, a stable foundation is what separates a shaky, frustrating camper experience from a comfortable, long-term mobile home. By selecting the right combination of heavy-duty stands, concrete bases, and wind tie-downs, you protect both your structural investment and your daily peace of mind. Taking the time to prep your site and calculate your load correctly ensures your alternative living setup remains safe and secure, no matter what the ground or the elements throw your way.
