7 Steps to Choose the Right Weight Distribution Hitch for Safe Towing
Master the 7 essential steps to select the perfect weight distribution hitch for safe, stable towing. Learn tongue weight calculations, suspension assessment, and system selection for your RV setup.
Why it matters: Towing heavy trailers without proper weight distribution can turn your family vacation into a dangerous nightmare — with trailer sway potentially causing accidents that injure passengers and damage vehicles.
The challenge: Most RV owners struggle to select the right weight distribution hitch because they don’t understand tongue weight calculations or how different hitch systems affect towing stability and safety.
Improve towing safety and control with the Fastway Connect Weight Distribution Hitch. It easily distributes weight, enhancing braking and steering, and fits most trailers without drilling.
What’s next: You’ll learn seven proven steps that eliminate guesswork and help you choose a weight distribution hitch that matches your specific towing setup perfectly.
Disclosure: As an Amazon Associate, this site earns from qualifying purchases. Thank you!
Determine Your Trailer’s Tongue Weight and Gross Vehicle Weight Rating
Your towing safety depends entirely on understanding these two critical weight measurements before selecting any hitch system. Getting these numbers wrong puts you at serious risk for dangerous trailer sway and potential accidents.
Calculate Your Trailer’s Tongue Weight Percentage
Your tongue weight should typically fall between 10-15% of your trailer’s total loaded weight. Weigh your fully loaded trailer at a truck stop scale, then use a tongue weight scale or visit a dealer to measure the downward pressure on your hitch ball. If your 6,000-pound travel trailer has 900 pounds of tongue weight, you’re at 15% – right at the upper safe limit.

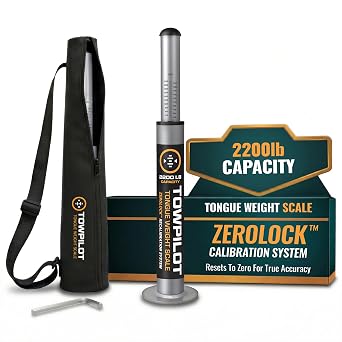

Ensure safe towing with the TowPilot Lite tongue weight scale. Accurately measure up to 2200 lbs in 60 seconds using its durable steel frame and anti-slip platform, and store it easily in the included weatherproof bag.
Check Your Vehicle’s Towing Capacity Specifications
Your owner’s manual contains three crucial numbers: maximum towing capacity, tongue weight rating, and gross combined vehicle weight rating (GCVWR). Don’t rely on marketing materials or dealer estimates – these specs vary significantly between trim levels and engine options. A 2023 Ford F-150 with the 3.5L EcoBoost can tow 14,000 pounds, but the same truck with the base V6 maxes out at 8,200 pounds.
Measure Your Current Setup’s Weight Distribution
Load your vehicle with all passengers, cargo, and supplies, then weigh each axle separately at a truck scale. Compare these loaded weights to your unloaded measurements to see exactly how weight transfers when you add your trailer. This real-world data reveals whether your current setup creates dangerous weight imbalances that require correction through proper hitch selection.
Get accurate tandem axle weight readings with this easy-to-install analog scale. Features a clear 3 ½” gauge and durable, weather-resistant enclosure.
Assess Your Vehicle’s Rear Suspension and Handling Characteristics
Your vehicle’s rear suspension tells the complete story of how well it’s handling your trailer’s tongue weight. This critical assessment reveals whether your current setup is compromising both safety and performance.
Evaluate Current Sagging and Squatting Issues
Measure your vehicle’s rear-end drop by comparing loaded versus unloaded heights. Park on level ground and measure from the ground to your rear wheel wells before hitching up. Then remeasure after connecting your loaded trailer.
Excessive sagging beyond 2 inches indicates your tongue weight is overwhelming your stock suspension. This creates dangerous handling issues and reduces your headlight effectiveness by pointing them skyward.
Test Your Vehicle’s Steering Response While Towing
Drive your current setup at various speeds to identify steering problems before they become dangerous. Start in an empty parking lot at low speeds, then progress to highway conditions while monitoring how your vehicle responds.
Pay attention to wandering, oversteering when changing lanes, or delayed steering response. These symptoms indicate your front axle is carrying insufficient weight due to improper tongue weight distribution across your vehicle’s wheelbase.
Check Your Headlight Alignment Under Load
Aim your headlights at a wall 25 feet away to measure beam alignment changes when towing. Mark the beam position without your trailer attached, then compare it to the loaded position.
Headlights pointing more than 2 inches higher when loaded create dangerous blind spots for oncoming traffic. This upward tilt also reduces your forward visibility distance, particularly problematic when descending hills or approaching intersections at night.
Select the Appropriate Weight Distribution System Type
After understanding your vehicle’s capacity and suspension characteristics, you’ll need to choose the right type of weight distribution system that matches your specific towing setup and performance requirements.
Compare Round Bar vs. Trunnion Bar Systems
Round bar systems use traditional L-shaped spring bars that attach to chains beneath your trailer frame. They’re the most common and affordable option, typically costing $200-400 less than trunnion systems.
Easily repair or replace watch bands with this 460-piece stainless steel spring bar set. Includes a spring bar remover and a variety of pin sizes (6-25mm) to fit most watch bands.
Trunnion bar systems feature cam-action levers that provide more precise weight transfer and easier setup adjustments. You’ll get better fine-tuning control and smoother operation, especially when frequently adjusting for different loads or road conditions.
Understand Integrated vs. Separate Sway Control Options
Integrated sway control combines weight distribution and anti-sway functions in a single system like the Equalizer 4-Point or Blue Ox SwayPro. You’ll enjoy simplified setup and reduced equipment under your trailer.
Control trailer sway and distribute weight for a safer, more stable towing experience. This Equal-i-zer hitch kit, rated for 12,000 lbs, improves steering and braking with its integrated 4-point sway control.
Separate sway control systems add friction or cam-action devices to your existing weight distribution hitch. They offer more customizable sway resistance but require additional installation space and maintenance of multiple components.
Consider Adjustable vs. Fixed Weight Distribution Settings
Fixed systems provide consistent performance once properly set up and work well if you maintain similar trailer loads. You’ll spend less time adjusting settings but sacrifice flexibility for varying cargo weights.
Adjustable systems like the Reese Strait-Line allow you to modify weight distribution without removing spring bars. They’re essential if your trailer’s tongue weight varies significantly between trips or you tow multiple trailers.
Distribute trailer weight evenly with this 1,200 lb trunnion-style kit, ideal for tongue weights from 600-1,200 lbs. It eliminates U-bolts for unobstructed A-frame mounting.
Calculate the Proper Spring Bar Weight Rating
After selecting your weight distribution system type, you’ll need to determine the exact spring bar weight rating that matches your towing setup. This calculation ensures your hitch transfers weight effectively without overloading your vehicle’s front axle.
Match Spring Bar Capacity to Your Tongue Weight
Select spring bars rated 100-200 pounds above your actual tongue weight to ensure adequate weight transfer capacity. If your trailer’s tongue weight measures 800 pounds, choose spring bars rated between 900-1000 pounds. This buffer prevents overloading the bars and maintains consistent performance across different road conditions and driving scenarios.
Account for Additional Cargo and Passenger Weight
Factor in your vehicle’s passenger and cargo load when calculating spring bar requirements since this weight affects tongue weight distribution. A fully loaded vehicle with five passengers and gear can add 50-100 pounds to effective tongue weight. Calculate your heaviest typical load scenario and add this to your base tongue weight measurement for accurate spring bar selection.
Allow for Seasonal Load Variations
Choose spring bars that accommodate your heaviest seasonal towing configuration rather than your lightest setup. Summer camping trips with full water tanks and gear create significantly more tongue weight than winter storage moves. Plan for maximum load scenarios including full propane tanks, loaded storage compartments, and seasonal equipment to avoid upgrading your hitch system later.
Choose Compatible Hitch Ball and Shank Specifications
Your spring bar selection means nothing without properly matched ball and shank components. This step determines whether your weight distribution system will perform safely or create dangerous towing conditions.
Select the Correct Ball Size and Weight Rating
Match your ball diameter to your trailer’s coupler size – typically 1⅞”, 2″, or 2⁵⁄₁₆” for most RVs and heavy trailers. Using a 1⅞” ball on a 2″ coupler creates dangerous play that leads to separation accidents.
Choose a ball with a weight rating 20% higher than your gross trailer weight. A 7,000-pound trailer requires at least an 8,400-pound rated ball to handle dynamic loads during turns and stops.
Determine Proper Shank Length and Drop Requirements
Measure your loaded trailer height at the coupler and compare it to your receiver height to calculate the required drop or rise. Most weight distribution hitches need 1-4 inches of drop to achieve proper towing alignment.
Select a shank length that positions the ball 3-4 inches behind your bumper. Shorter shanks can cause trailer contact during tight turns, while excessive length reduces tongue weight transfer effectiveness.
Verify Hitch Class Compatibility
Check your receiver’s class rating against your weight distribution hitch requirements – Class III handles up to 5,000 pounds tongue weight, while Class IV supports up to 10,000 pounds. Mismatched classes create catastrophic failure points.
Confirm your receiver tube size matches your shank – 2″ receivers are standard for most weight distribution systems, while 2½” receivers handle commercial applications. Using adapters reduces the system’s overall safety rating.
Evaluate Sway Control Integration and Effectiveness
After selecting your spring bar weight rating and hitch components, you’ll need to determine the most effective sway control system for your specific towing setup. The right sway control integration can mean the difference between a white-knuckle towing experience and confident highway cruising.
Compare Friction-Based vs. Cam-Action Sway Control
Friction-based sway control systems use adjustable pads that create resistance against the trailer’s coupler when sway begins. They’re affordable and work well for moderate crosswinds but require frequent adjustments and wear out faster with heavy use.
Cam-action systems engage automatically when sway motion starts, providing consistent resistance without manual adjustments. They’re more expensive but offer superior performance in challenging conditions like mountain passes and high-traffic areas with frequent wind buffeting.
Consider Built-In vs. Add-On Sway Control Systems
Built-in sway control systems integrate directly into your weight distribution hitch’s spring bars, creating a cleaner installation with fewer components. These systems typically provide more consistent sway control but limit your flexibility to adjust settings independently.
Add-on sway control systems attach separately to your hitch setup, allowing you to customize resistance levels and replace components individually. They require additional mounting space and create more connection points but offer greater versatility for different trailers and towing conditions.
Test Different Sway Control Adjustment Settings
Start with manufacturer-recommended settings and test your setup in a controlled environment like an empty parking lot. Gradually increase sway control tension while monitoring how your trailer responds to steering inputs and wind gusts.
Fine-tune settings during actual towing conditions, adjusting for crosswinds and highway speeds. Too little tension allows dangerous sway to develop, while excessive tension can cause trailer bucking and premature tire wear on tight turns.
Install and Fine-Tune Your Weight Distribution System
Once you’ve selected your weight distribution hitch, proper installation and calibration ensure optimal towing performance and safety.
Follow Manufacturer’s Installation Guidelines
Installing your weight distribution system requires precise attention to manufacturer specifications. You’ll need to mount the hitch head at the exact height recommended for your trailer’s coupler position.
Most installations involve torquing bolts to specific values ranging from 250-450 foot-pounds depending on your hitch class. Always use a calibrated torque wrench rather than guessing at proper tightness levels.
Double-check all connection points including safety chains and verify that spring bars engage properly with the hitch head brackets before your first towing trip.
Adjust Spring Bar Tension for Optimal Performance
Spring bar tension directly affects weight transfer effectiveness and requires careful adjustment based on your specific setup. Start by setting the bars to restore approximately 50-75% of your vehicle’s original front axle weight.
You’ll achieve proper tension when the front of your tow vehicle returns to within 1 inch of its unloaded height. Most systems require 3-5 chain link adjustments to find the optimal setting.
Test different tension levels by measuring front and rear axle weights with a truck scale to verify balanced weight distribution across all axles.
Test and Calibrate Your Complete Towing Setup
Testing your complete system involves evaluating performance under real towing conditions at various speeds and road surfaces. Begin with short test drives at 35-45 mph to assess initial stability and steering response.
Gradually increase speeds while monitoring for any trailer sway or unusual handling characteristics. Your properly adjusted system should eliminate porpoising and maintain straight tracking without constant steering corrections.
Fine-tune sway control settings during test drives by making small adjustments until you achieve smooth confident handling in crosswinds and when passing large vehicles.
Conclusion
Choosing the right weight distribution hitch doesn’t have to be overwhelming when you follow these seven systematic steps. By taking accurate measurements and understanding your vehicle’s capabilities you’ll avoid the common pitfalls that lead to dangerous towing situations.
Remember that proper hitch selection is an investment in your safety and peace of mind on the road. The time you spend calculating tongue weights and testing different configurations will pay dividends in improved handling and reduced trailer sway.
Don’t rush the process – take your time to get each step right. Your towing experience will be dramatically safer and more enjoyable when you’re confident that your weight distribution system is perfectly matched to your specific setup.
Frequently Asked Questions
What is the proper tongue weight percentage for my trailer?
Tongue weight should typically be between 10-15% of your trailer’s total loaded weight. This ensures proper weight distribution and prevents dangerous trailer sway. To calculate this, multiply your loaded trailer weight by 0.10 to 0.15. For example, a 6,000-pound trailer should have 600-900 pounds of tongue weight for optimal towing safety and stability.
How do I know if my vehicle’s suspension can handle the tongue weight?
Measure your vehicle’s rear-end drop before and after hitching the trailer. If the sagging exceeds 2 inches, your tongue weight may be overwhelming the stock suspension. Also check for steering response issues like wandering or delayed response, and verify that headlights don’t point more than 2 inches higher when loaded.
What’s the difference between round bar and trunnion bar weight distribution systems?
Round bar systems are the most common and affordable option, providing basic weight distribution. Trunnion bar systems offer more precise weight transfer and easier adjustments, making them ideal for frequent towers or those requiring fine-tuned control. Trunnion bars typically provide better performance but come at a higher cost.
How do I select the correct spring bar weight rating?
Choose spring bars rated 100-200 pounds above your actual tongue weight to ensure effective weight transfer without overloading. Account for additional cargo and passenger weight in your calculations. Always plan for your heaviest typical load scenario to ensure the system remains effective across different towing configurations and seasonal variations.
Should I choose integrated or separate sway control systems?
Integrated sway control systems combine weight distribution and anti-sway functions in one unit, offering cleaner installation and easier setup. Separate sway control options require additional installation space but allow for more customization. Consider your specific towing needs, available space, and budget when making this decision.
How do I properly adjust my weight distribution system?
Follow manufacturer installation guidelines for mounting height and torque specifications. Adjust spring bar tension to restore your vehicle’s original front axle weight. Test the complete setup under real conditions and make small adjustments during test drives to achieve optimal handling and eliminate trailer sway issues.
What are the signs that my weight distribution hitch isn’t working properly?
Watch for trailer sway, excessive vehicle sagging, poor steering response, or headlights pointing too high when loaded. Other signs include uneven tire wear, difficulty controlling the trailer in crosswinds, or the vehicle feeling unstable at highway speeds. These symptoms indicate the need for hitch adjustments or replacement.
