7 DIY Waterproofing Methods for Bathroom Repairs That Save Big

Water damage in your bathroom can quickly escalate from a minor inconvenience to a costly disaster. You don’t need to hire expensive contractors to tackle most waterproofing issues – with the right techniques and materials you can protect your space effectively.

The big picture: Simple DIY waterproofing methods can save you thousands while preventing mold growth and structural damage. Whether you’re dealing with leaky shower corners or moisture-prone areas around your tub these proven strategies will help you create a watertight seal that lasts.

Disclosure: As an Amazon Associate, this site earns from qualifying purchases. Thank you!

Apply Waterproof Membrane Behind Tiles

Installing a waterproof membrane behind tiles creates a critical barrier that prevents moisture from reaching your bathroom’s structural elements. This method works as your primary defense against water damage in high-moisture areas like shower surrounds.

Choose the Right Membrane Material

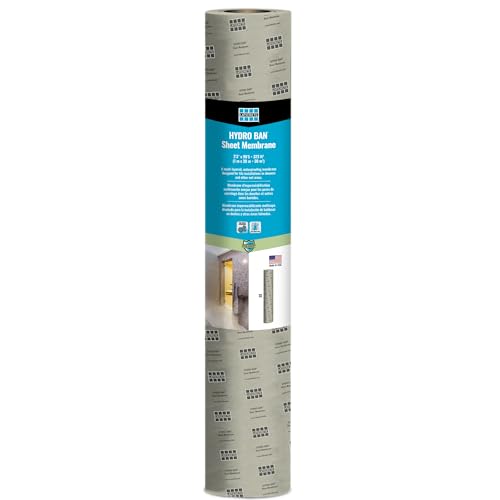

You’ll find three main membrane types for bathroom applications: sheet membranes, liquid membranes, and fabric-reinforced options. Sheet membranes like Schluter-Kerdi offer excellent durability and cost between $3-5 per square foot. Liquid membranes such as RedGard provide easier application around complex shapes and corners. Fabric-reinforced membranes combine the best of both worlds, offering tear resistance with flexible application. Choose sheet membranes for large flat areas and liquid membranes for detailed work around fixtures and penetrations.

Prepare the Surface Properly

Your substrate must be clean, dry, and structurally sound before membrane installation. Remove all old adhesive, paint flakes, and debris using a scraper or wire brush. Fill any cracks larger than 1/8 inch with appropriate patching compound and allow 24 hours to cure. Check for level surfaces using a straightedge – variations exceeding 1/4 inch over 10 feet require correction. Prime porous surfaces like drywall or concrete with manufacturer-recommended primer to ensure proper membrane adhesion and prevent air bubbles during installation.

Install Using Proper Adhesive Techniques

Apply adhesive using a 1/4-inch notched trowel held at a 45-degree angle to create uniform ridges. Work in 3-foot sections to prevent adhesive from skinning over before membrane placement. Press membrane firmly using a plastic float or roller, working from center outward to eliminate air pockets. Overlap seams by 2 inches minimum and seal with manufacturer-specified tape or liquid sealant. Pay special attention to inside corners where you’ll need to create pleats rather than stretching the membrane, which can cause tears and compromise waterproofing effectiveness.

Seal Grout Lines with Waterproof Sealant

Grout lines create the most vulnerable entry points for water in your bathroom. You’ll find that properly sealed grout prevents moisture from penetrating behind tiles and causing expensive damage.

Select High-Quality Grout Sealers

Penetrating sealers work best for bathroom applications since they soak deep into grout pores. Look for silicone-based or acrylic sealers rated for wet areas like Aqua Mix Sealer’s Choice Gold or Miracle Sealants 511 Impregnator.

Avoid topical sealers that sit on the surface – they’ll peel and trap moisture underneath. Quality penetrating sealers cost $15-25 per quart but protect grout for 3-5 years with proper application.

Clean Existing Grout Thoroughly

Remove all soap scum and mildew before sealing since sealers won’t penetrate dirty surfaces. Use a grout brush with oxygen bleach cleaner or a 50/50 vinegar-water solution for natural cleaning.

Let grout dry completely for 24-48 hours after cleaning. Moisture trapped under new sealant creates the perfect environment for mold growth and sealer failure.

Apply Sealant in Thin, Even Coats

Use a small foam brush or applicator bottle to control sealant flow and avoid over-application. Apply in 3-foot sections working from top to bottom to prevent drips on sealed areas.

Wipe excess sealant immediately with a clean cloth – dried overspray creates a hazy film that’s difficult to remove. Most sealers require two thin coats applied 15-30 minutes apart for complete protection.

Install Waterproof Backer Board

Waterproof backer board creates a solid foundation that prevents moisture from reaching your bathroom’s structural elements. You’ll need to choose the right type and install it properly to ensure your DIY waterproofing project succeeds.

Compare Cement Board vs Foam Board Options

Cement board offers superior strength and costs around $1.50 per square foot, making it ideal for heavy tile installations. It’s completely waterproof and won’t deteriorate when exposed to moisture over time.

Foam board weighs 75% less than cement board and cuts easily with a utility knife, but costs $2.50 per square foot. You’ll find foam board perfect for lightweight ceramic tiles and areas where structural support isn’t critical.

Cut and Fit Boards Accurately

Measure each wall section twice before cutting to avoid costly mistakes with your backer board material. Use a circular saw with a carbide blade for cement board or a sharp utility knife for foam board.

Leave a 1/8-inch gap between board edges and a 1/4-inch gap at the floor to allow for expansion. You’ll need to cut precise openings around plumbing fixtures using a jigsaw or hole saw attachment.

Secure with Appropriate Fasteners

Drive screws every 8 inches along the perimeter and every 12 inches in the field area to properly secure your backer board. Use 1-1/4 inch cement board screws for cement board or 1-inch screws for foam board installations.

Countersink screw heads slightly below the surface without over-driving them into the board material. You’ll damage the board’s integrity if screws penetrate too deeply, creating weak spots in your waterproof barrier.

Caulk All Joints and Penetrations

Caulking creates your final defense against water infiltration in bathroom fixtures and corners. You’ll need to address every gap where different materials meet, including shower corners, tub edges, and fixture penetrations.

Remove Old Caulk Completely

Scrape away all existing caulk using a plastic putty knife or specialized caulk removal tool. Old caulk prevents proper adhesion and creates gaps where water can seep through. Apply caulk remover gel to stubborn residue and let it sit for 30 minutes before scraping. Clean the joint with rubbing alcohol to remove soap scum and mildew that could compromise your new seal.

Choose Mold-Resistant Caulk Products

Select 100% silicone caulk with built-in mildewcide for bathroom applications. These products cost $8-12 per tube but resist moisture and prevent mold growth for 5-7 years. Avoid acrylic latex caulks in wet areas as they break down quickly. Look for brands like GE Silicone II or DAP Kwik Seal that specifically mention bathroom use and mold resistance on their labels.

Apply with Smooth, Continuous Beads

Cut the caulk tube tip at a 45-degree angle to create a ¼-inch opening for optimal bead size. Apply steady pressure while moving the gun in one continuous motion to avoid gaps or air bubbles. Use your finger dipped in soapy water to smooth the bead within 5 minutes of application. Work in sections no longer than 3 feet to maintain control and consistent results.

Apply Liquid Waterproofing Coating

Liquid waterproofing coating creates a seamless rubber-like membrane that adapts to surface imperfections and movement. This flexible coating penetrates into substrate pores while forming a protective barrier that prevents water infiltration through cracks and joints.

Select Appropriate Coating Type

Polyurethane coatings offer superior flexibility and durability for high-traffic areas like shower floors, typically costing $15-25 per gallon. Acrylic-based formulas work well for walls and provide easier cleanup at $8-15 per gallon. Elastomeric coatings handle structural movement best, making them ideal for older homes where settling occurs. Choose solvent-based products for maximum adhesion or water-based options for reduced odor and faster curing times.

Prepare Surfaces for Maximum Adhesion

Clean surfaces thoroughly with degreasing agents to remove soap residue, oils, and mildew that prevent proper bonding. Sand glossy surfaces lightly using 220-grit sandpaper to create mechanical adhesion points. Fill cracks and holes with appropriate filler compound, allowing complete curing before coating application. Prime porous surfaces like concrete or drywall with manufacturer-recommended primer to prevent coating absorption and ensure uniform coverage thickness.

Use Multiple Thin Coats for Best Results

Apply first coat at manufacturer’s specified thickness using a high-quality synthetic brush or roller designed for waterproofing products. Wait recommended recoat time typically 4-6 hours between applications to allow proper curing without compromising adhesion. Cross-hatch subsequent coats by applying perpendicular to previous layers, ensuring complete coverage without thin spots. Most liquid coatings require 2-3 applications totaling 20-30 mils dry film thickness for optimal waterproofing performance.

Install Waterproof Shower Pan Liner

Installing a waterproof shower pan liner creates a critical water barrier beneath your shower floor, preventing moisture from seeping into the subfloor and causing structural damage.

Measure and Cut Liner Material

Measure your shower pan area carefully, adding 6-8 inches to each dimension for proper overlap up the walls. Use a utility knife with a sharp blade to cut the liner material, ensuring clean edges that won’t tear during installation. Choose EPDM rubber or PVC liner material for durability—both resist punctures and maintain flexibility over time.

Create Proper Slope for Drainage

Build a pre-slope using mortar mix before installing your liner, creating a 1/4-inch drop per foot toward the drain. This ensures water flows properly even if your finish floor develops minor imperfections. Install the liner over this pre-slope, then add another mortar layer on top to maintain the drainage angle for your tile or shower floor finish.

Seal All Seams and Corners

Apply waterproof sealant to all liner seams using products specifically designed for shower pan materials. Press seams firmly together and smooth sealant with your finger for complete coverage. Pay special attention to corners where three surfaces meet—these areas require extra sealant and careful smoothing to prevent future leaks.

Repair and Waterproof Around Fixtures

Fixtures create the most vulnerable spots in your bathroom’s waterproofing system. These areas where pipes, faucets, and showerheads penetrate through walls require specialized attention to prevent water from finding its way behind your carefully installed barriers.

Address Pipe Penetrations

Pipe penetrations through walls create direct pathways for water infiltration if you don’t seal them properly. Remove old caulk completely around each pipe opening and clean the area with isopropyl alcohol. Apply 100% silicone caulk in a continuous bead around the pipe where it meets the wall surface. Smooth the caulk with your finger within 5 minutes of application to ensure complete contact with both the pipe and wall surface.

Seal Around Faucets and Showerheads

Faucets and showerheads require specialized sealing techniques since they experience frequent movement and temperature changes. Install rubber gaskets behind decorative plates before mounting fixtures to create your first line of defense. Apply a thin layer of plumber’s putty around the fixture base where it contacts the wall surface. Use marine-grade silicone caulk to seal the perimeter where the fixture meets the wall after installation.

Install Waterproof Escutcheon Plates

Escutcheon plates provide decorative covers while creating watertight seals around pipe openings and valve stems. Choose plates with built-in rubber gaskets rather than relying solely on caulk for sealing. Apply a thin coat of silicone sealant to the back of the plate before installation. Tighten mounting screws evenly to compress the gasket without over-tightening which can crack ceramic tiles or damage the waterproof barrier beneath.

Conclusion

These seven DIY waterproofing methods give you the tools to protect your bathroom from costly water damage. You’ll save thousands in contractor fees while gaining valuable home improvement skills that’ll serve you for years to come.

Remember that proper preparation is half the battle—clean surfaces and quality materials make all the difference in your waterproofing success. Take your time with each step and don’t rush the drying process between applications.

Your bathroom will thank you with years of leak-free performance when you implement these proven techniques correctly. Start with the areas showing the most wear and work your way through each method systematically for the best results.

Frequently Asked Questions

What are the main types of waterproof membrane materials for bathrooms?

There are three main types: sheet membranes (pre-formed plastic or rubber sheets), liquid membranes (applied as liquid and cure to form a barrier), and fabric-reinforced membranes (combine fabric backing with waterproof coating). Each type varies in cost and application method, with sheet membranes being most common for DIY projects.

How do I prepare the surface before installing a waterproof membrane?

Clean the surface thoroughly to remove dirt, grease, and debris. Fill any cracks or holes with appropriate filler material. Prime porous surfaces like drywall or concrete to ensure proper adhesion. The surface must be completely dry and smooth before membrane installation for maximum effectiveness.

What type of caulk should I use for bathroom waterproofing?

Use 100% silicone caulk with built-in mildewcide for best results. This type offers superior durability and mold resistance in wet environments. Marine-grade silicone caulk is recommended for areas around fixtures. Avoid latex or acrylic caulks as they’re less effective in high-moisture areas.

What’s the difference between cement board and foam board for bathroom walls?

Cement board is more durable and fire-resistant, making it ideal for heavy tile installations, but it’s heavier and more expensive. Foam board is lighter, easier to cut, and provides better insulation, but it’s less durable. Choose based on your specific bathroom needs and budget.

How many coats of liquid waterproofing should I apply?

Apply multiple thin coats rather than one thick coat for optimal results. Typically, 2-3 thin coats provide better coverage and adhesion. Allow each coat to dry completely according to manufacturer specifications before applying the next layer. This ensures maximum waterproofing effectiveness.

What’s the proper slope for a shower pan liner?

Create a pre-slope of 1/4 inch per foot toward the drain before installing the liner. This ensures proper water drainage and prevents pooling. Build the pre-slope using mortar mix, then install the waterproof liner over it, maintaining the slope for effective water management.

How do I seal pipe penetrations to prevent water damage?

Remove old caulk completely and clean the area thoroughly. Apply 100% silicone caulk around the pipe where it enters the wall or floor. For added protection, use waterproof escutcheon plates with rubber gaskets. Ensure complete coverage without gaps for effective sealing.

When should I replace old caulk in my bathroom?

Replace caulk when you notice cracks, gaps, discoloration, or mold growth. Old caulk should also be removed before applying new waterproofing materials to ensure proper adhesion. Complete removal is essential – any remaining old caulk can create failure points in your waterproof barrier.
