5 HVAC System Options for Manufactured Homes: Pros & Cons

Manufactured homes offer an affordable path to homeownership, but keeping them comfortable year-round requires more than just picking a standard residential furnace. The unique structural engineering, thin wall cavities, and tight duct pathways of mobile homes create immediate challenges for heating and cooling. Standard residential systems cannot simply be dropped into a manufactured chassis without risking structural damage or code violations. Navigating these constraints requires a clear-eyed look at the five primary HVAC options tailored for manufactured structures.

Disclosure: As an Amazon Associate, this site earns from qualifying purchases. Thank you!

Packaged Systems: All-in-One Outdoor Comfort

Packaged systems contain all heating and cooling components within a single, self-contained steel cabinet located entirely outside the home. This configuration is highly popular for manufactured homes because it eliminates indoor mechanical noise and saves precious interior square footage. Air travels to and from the living space through heavy-duty, insulated flex ducts connected to the home’s underbelly.

The primary advantage of a packaged system is its zero footprint inside the living envelope and its easy maintenance access for technicians. However, because the unit sits completely outdoors, it is constantly exposed to harsh weather, which can accelerate wear on electrical components and cabinets. In areas prone to flooding or heavy snowfall, these units must be elevated on sturdy platforms to prevent catastrophic system failure.

Installation is straightforward but requires a clear, level ground space directly adjacent to the home’s utility entry point. If the exterior duct connections are not meticulously sealed and insulated, pests can breach the system, and significant energy loss will occur under the home. This system works best if you want to keep mechanical noise outside and maximize your indoor storage closets.

Central Split Systems: Standard Ducted Comfort

A central split system divides its components between an indoor evaporator coil—usually paired with a gas or electric furnace in a utility closet—and an outdoor condenser unit. This layout mirrors the setup found in traditional site-built homes, utilizing the manufactured home’s built-in floor duct system. It offers stable, whole-house climate control through a single, central thermostat.

While highly effective, split systems demand precious indoor closet space that could otherwise be used for storage. The indoor furnace unit must draw air from the living space, which often requires a loud, slatted closet door that can disrupt quiet living. Additionally, retrofitting a split system into an older manufactured home may require upgrading the indoor electrical panel to handle the high amp draw of the auxiliary heat strips.

This option is best suited for homeowners who want seamless, invisible heating and cooling without wall-mounted units. It remains a costly path if the existing under-floor ductwork is crushed, disconnected, or contaminated with mold, necessitating expensive repairs before the new system can run safely.

Ductless Mini-Splits: High Efficiency Zoning

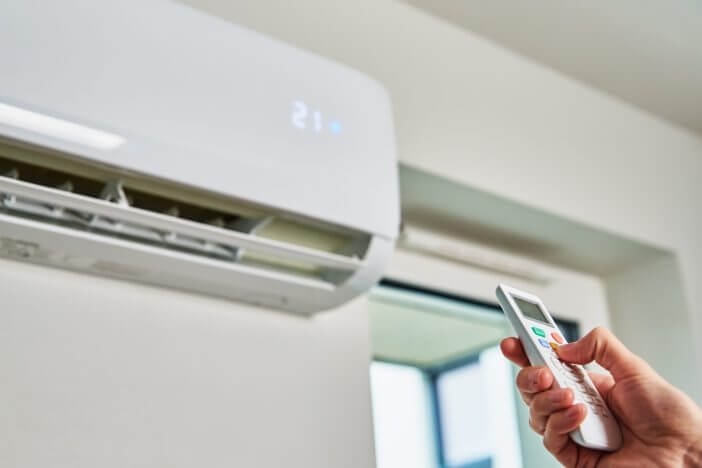

Ductless mini-splits bypass the home’s existing ductwork entirely by utilizing individual wall-mounted air handlers connected to an outdoor compressor via small refrigerant lines. This setup represents the gold standard for energy efficiency, as it eliminates the 20 to 30 percent energy loss associated with leaky duct systems. Each room, or zone, can be controlled independently to match personal comfort levels and reduce energy waste.

The installation requires only a three-inch hole through the exterior wall for the conduit line, preserving the structural integrity of the home’s thin wall framing. However, the aesthetic impact can be a drawback, as large plastic air handlers must be mounted high on living room and bedroom walls. In cold climates, standard mini-splits lose heating capacity rapidly unless you invest in specialized low-ambient heating models rated down to sub-zero temperatures.

Upfront equipment costs are high, especially for multi-zone systems covering three or more rooms. Yet, the long-term savings on utility bills and the ability to heat or cool only occupied spaces make this a highly practical choice for those looking to lower monthly operational costs.

Evaporative Coolers: Low-Cost Dry Climate Tech

Often called swamp coolers, evaporative coolers pull hot, dry outdoor air through water-saturated pads, cooling the air through evaporation before blowing it into the home. These systems consume a fraction of the electricity used by standard compressor-based air conditioners. They are highly effective in arid regions like the American Southwest, where relative humidity consistently stays below 30 percent.

The main drawback is their reliance on a constant water supply and their complete lack of effectiveness in humid climates. If the outdoor humidity rises, the cooling capacity drops drastically, leaving the indoor air warm and sticky. Introducing large volumes of humidified air into a manufactured home can trigger mold growth on thin paneling and inside uninsulated wall cavities if proper ventilation is not maintained.

Regular maintenance is non-negotiable, requiring seasonal pad replacement, water line draining to prevent freezing, and mineral deposit cleanup. For dry-climate homesteaders on a strict budget, however, this technology provides the lowest operational cost of any cooling option on the market.

PTAC Wall Units: Zoned Heating and Cooling

Packaged Terminal Air Conditioners, or PTACs, are the commercial-grade wall units commonly seen in hotel rooms. They sit directly inside a sleeve cut through the exterior wall of the home, combining all heating and cooling components in one box. This design offers a rugged, ductless solution that is perfect for single-wide homes or additions.

PTAC units are highly reliable and easy to swap out if a mechanical failure occurs, requiring no specialized refrigeration tools for a replacement. On the downside, they are incredibly noisy during operation and require cutting a large, permanent rectangular opening through the home’s structural wall. Improper flashing around a PTAC wall sleeve is a primary cause of hidden dry rot in manufactured home framing.

These units are highly localized, meaning a single unit will struggle to distribute air to distant bedrooms in a double-wide layout. They are best deployed as supplemental zoning units or as the primary HVAC source in compact, open-concept floor plans where air can circulate freely.

Why Manufactured Home Ductwork Limits Your Choices

The ductwork in a manufactured home is fundamentally different from that of a traditional site-built house. It is typically built as a single, narrow trunk line running down the center of the floor chassis, often measuring only 10 to 12 inches wide. This narrow profile restricts airflow and cannot handle the high static pressure generated by standard residential HVAC systems.

Attempting to force air from a standard, high-tonnage residential system through these small ducts can burn out the blower motor prematurely. It also results in incredibly noisy grilles and highly uneven temperature distribution throughout the home. Most manufactured home ducts are insulated with a thin vinyl vapor barrier underneath the home, which is highly vulnerable to tears, rodent damage, and water intrusion.

Before investing in a new ducted system, a professional pressure test of the existing ductwork is mandatory. If the ducts under the home are collapsed or disconnected, you are better off bypassing them entirely with a ductless mini-split system rather than attempting to rebuild the underbelly duct network.

Navigating HUD Code Requirements for HVAC Systems

Manufactured homes built after June 15, 1976, must comply with the federal Manufactured Home Construction and Safety Standards, commonly known as the HUD Code. This code dictates strict safety and efficiency standards for all heating, cooling, and ventilation equipment installed in these homes. You cannot legally install standard site-built HVAC equipment unless it is explicitly certified for use in manufactured housing.

One of the most critical HUD requirements is that gas furnaces must draw their combustion air directly from the outdoors through a sealed combustion system. This prevents the furnace from depleting the oxygen inside the tightly sealed envelope of a manufactured home. Installing a standard residential gas furnace in a mobile home is a severe safety hazard and will void your homeowner’s insurance policy immediately.

Every manufactured home features a data plate inside the master bedroom closet or electrical panel that specifies the home’s design zones for wind, roof load, and climate. Your replacement HVAC system must align with the thermal zone ratings listed on this plate to comply with local code enforcement and preserve resale value.

Sizing Your System: Accounting for Thin Insulation

Manufactured homes, particularly older models, feature much thinner wall cavities than standard homes, often utilizing 2×3 or 2×4 framing. This limits the depth of insulation, resulting in much lower R-values—often R-11 in the walls compared to R-19 or higher in modern site-built structures. Consequently, these homes experience rapid heat gain in the summer and rapid heat loss in the winter.

Standard HVAC sizing rules of thumb, like “one ton of cooling per 500 square feet,” do not apply to manufactured housing. A system sized using standard residential metrics will underperform, running constantly to keep up with the thermal transfer through the thin walls and single-pane windows. An accurate Manual J load calculation is essential to determine the exact heating and cooling demands based on your specific insulation package.

Over-sizing the system is equally dangerous, as a system that is too large will short-cycle. This means it turns on and off rapidly, failing to remove humidity from the air, which leads to a clammy indoor environment and premature compressor failure.

Real-World Cost Breakdown: Equipment and Install

Upgrading or replacing your HVAC system involves significantly different pricing tiers depending on the technology selected. A basic, HUD-approved electric split system or packaged unit typically runs between $3,500 and $6,500 for the equipment alone. Professional installation, which includes duct inspection, electrical hookups, and old unit disposal, will add another $2,500 to $5,000 to the total project cost.

Ductless mini-splits offer high efficiency but come with a higher initial price tag. A multi-zone system with three indoor wall units and one outdoor compressor generally costs between $6,000 and $9,500 fully installed. For those in dry climates, an industrial-grade evaporative cooler is the most budget-friendly option, with total costs ranging from $2,000 to $4,000 installed.

• HUD-Approved Split System: $6,000 – $11,500 (Total Installed Cost)
• Multi-Zone Ductless Mini-Split: $6,000 – $9,500 (Total Installed Cost)
• Packaged Outdoor System: $5,500 – $10,000 (Total Installed Cost)
• PTAC Wall Unit (Per Unit): $1,200 – $2,500 (Total Installed Cost)
• Evaporative Cooler: $2,000 – $4,000 (Total Installed Cost)

DIY Pitfalls: Why Professional Install Is Crucial

The rise of pre-charged DIY mini-split kits has tempted many homeowners to tackle HVAC installations themselves. While cutting a hole in a wall seems simple, working with high-voltage electricity, hazardous refrigerants, and delicate wall framing requires specialized skills. A single mistake during installation can void the manufacturer’s warranty and lead to expensive repairs down the road.

Proper refrigeration requires pulling a deep vacuum on the lines to remove all moisture before releasing the refrigerant. If moisture remains in the lines, it combines with the compressor oil to form a highly destructive acid that will destroy the compressor within months. Furthermore, in many jurisdictions, handling and charging refrigerants requires an EPA Section 608 certification, making DIY refrigerant work illegal.

A certified HVAC technician understands the specific airflow requirements of manufactured home ducts and the safety nuances of HUD-approved furnaces. Hiring a professional ensures your system operates at peak efficiency, preserves your home’s insurance coverage, and provides a safe, comfortable living environment for years to come.

Choosing the right HVAC system for a manufactured home is a balance of structural reality, local climate, and budget. By looking past the initial price tag and understanding the specific demands of your home’s physical build, you can make an investment that ensures comfort, safety, and energy efficiency for the long haul. Take the time to evaluate your existing infrastructure before making the leap.
