Van Solar Panels: Everything You Need to Know

Van solar panels provide eco-friendly, cost-effective power for van dwellers, offering comfort and off-grid living. Key components include solar panels, batteries, charge controllers, and automatic charging relays, with options for fixed or portable setups. Consider upfront costs, maintenance, and power needs when choosing the right system for your van.

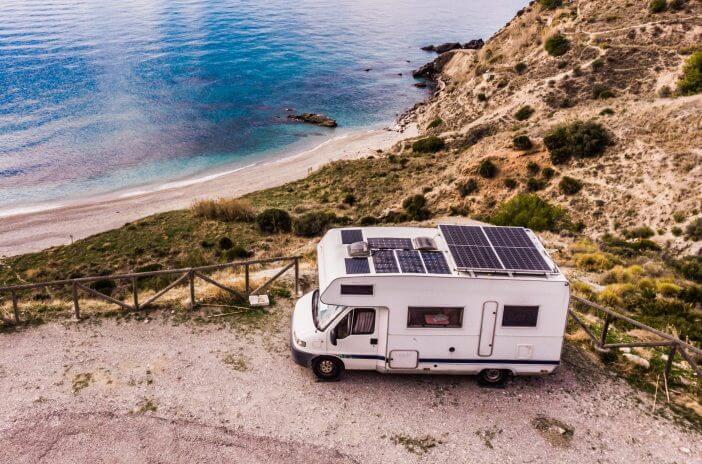

Caravan with solar panels on roof camping on cliff sea coast. Mediterranean region of Nerja, Costa del Sol in Andalusia, Spain.

Solar panels for vans are becoming increasingly popular among those who enjoy the freedom of life on the road.

Living in a van doesn’t mean you have to sacrifice comfort. In fact, with the right setup, it can be quite luxurious.

A key component of that setup is an efficient, reliable power source. Many van dwellers have turned to solar power as an eco-friendly and cost-effective solution.

Solar panels can provide power wherever you are, whether you’re parked at a campsite or in the middle of nowhere.

Hey hey – real quick! Don’t forget to subscribe to get our best content 🙂

They’re quiet, low-maintenance, and can save you money on energy costs in the long run. Additionally, they increase the self-sufficiency and flexibility of your van, allowing you to live off-grid if you desire.

Disclosure: As an Amazon Associate, this site earns from qualifying purchases. Thank you!

The Costs of Installing Van Solar Panels

Man installing solar panels on top of the roof of a camper van.

Upfront Costs

The initial cost of a solar setup can vary widely, depending on the size and type of the panels, the capacity of the batteries, and whether you choose to install it yourself or hire a professional.

However, while the upfront cost may seem daunting, it’s important to consider the long-term savings.

With solar power, you’ll spend less on fuel and campsite fees, and the sun’s energy is free to use.

Potential Repairs and Maintenance

Fortunately, solar panels require minimal maintenance.

They’re built to withstand harsh weather conditions and have no moving parts, reducing the chances of mechanical failure.

The main potential expense is the battery, which may need to be replaced every few years.

However, with good care and proper usage, the lifespan of a solar battery can be significantly extended.

The Key Components of a Complete Solar Setup

Solar Panels

Serra da Freita, Portugal - May 28, 2019 : Camper van solar roof panels with skylight top view Motorhome

The most visible part of a solar setup, solar panels are responsible for capturing sunlight and converting it into electricity.

There are several types of solar panels available, but monocrystalline panels are generally considered the most efficient.

For instance, the Renogy 175-Watt, 12-Volt Flexible Solar Panel is a top choice thanks to its high power capacity and efficiency, making it excellent for RVs.

Beyond monocrystalline panels, there are also polycrystalline and thin-film panels.

Polycrystalline panels are less efficient but more affordable, while thin-film panels are lightweight and flexible but suffer from lower efficiency and durability.

Your choice depends on your budget, space constraints, and energy needs.

To determine the right solar panel size, you’ll need to consider how much power you need.

In general, for every 100 Amp Hours of battery storage capacity on your RV, you need 300 watts of solar panel power.

So if you have a battery capacity of 200 to 250 AH, your solar panel output should be no less than 600 watts.

Batteries

Batteries store the electricity produced by the solar panels for later use.

For RVs, deep-cycle batteries are often used due to their ability to handle repeated charge and discharge cycles.

The size and number of batteries needed depend on your power consumption and how long you need to go without recharging.

Charge Controller

Solar Charge Controller

A charge controller regulates the voltage and current coming from the solar panels and prevents overcharging of the batteries.

An MPPT (Maximum Power Point Tracking) controller is typically more efficient than a PWM (Pulse Width Modulation) controller, though it’s also more expensive.

Automatic Charging Relay

An Automatic Charging Relay (ACR) allows your alternator to charge your house batteries while you’re driving.

This is particularly handy for cloudy days when solar charging might not be sufficient.

Understanding Portable Solar Panels

Charging battery at camper car. Caravan with portable solar photovoltaic panel camping on Verdicio beach, Asturias coast, northern Spain.

Portable solar panels offer the advantage of mobility. You can move them around to catch the best sunlight, and they’re easy to set up and take down.

They’re also great for those who don’t want to commit to a permanent installation or who have limited roof space.

How to Use Portable Solar Panels

Using portable solar panels is straightforward.

Simply place them in a sunny spot, connect them to your battery bank using the included cables and connectors, and let the sun do its work.

Portable solar panels often come with built-in charge controllers, making them a convenient all-in-one solution.

Concerns with Portable Solar Panels

While portable solar panels are convenient, they do have some limitations.

They typically have lower power output compared to fixed panels and may not be able to fully charge your batteries on cloudy days.

Additionally, they can be vulnerable to theft if left unattended in public areas.

Wiring Camper Van Solar Panels

Close-up of hands connecting cables attached to solar panels on top of a camper van.

When wiring multiple solar panels together, you have the option to wire them in series or parallel.

Wiring in series increases the voltage output but keeps the current the same, while wiring in parallel keeps the voltage the same but increases the current.

The choice depends on your specific setup and desired power output.

The Impact of Faults in a Series Wiring

One drawback of series wiring is that if one panel in the series develops a fault or shading, it can significantly reduce the output of the entire system.

It’s important to regularly inspect and maintain your solar panels to ensure optimal performance.

Budget-Friendly Options for Van Solar Panels

DIY Solar Systems

If you’re handy and want to save money, building your own solar system can be a cost-effective option.

You’ll need to research and purchase the necessary components, follow installation instructions carefully, and ensure compliance with safety regulations.

DIY solar systems require time and effort, but they can provide a sense of satisfaction and customization.

Portable Solar Panel and Charge Controller

If you’re on a tight budget or don’t want to commit to a full solar setup, a portable solar panel with a built-in charge controller can be a practical choice.

These compact panels are easy to set up and can provide enough power to charge small devices and run LED lights in your van.

RV Solar Panel Kits: Pros and Cons

What’s Included in an RV Solar Panel Kit

Renogy 200 Watts 12 Volts Monocrystalline RV Solar Panel Kit with Adventurer 30A LCD PWM Charge Controller and Mounting Brackets for RV, Boats, Trailer, Camper, Marine, Off-Grid Solar Power System

A typical RV solar panel kit includes the solar panel(s), a solar charge controller, mounts for installation, fuses, cabling, and connectors.

However, most kits do not include batteries or inverters, so you’ll need to purchase those separately.

Advantages and Disadvantages of Using a Kit

The main advantage of using an RV solar panel kit is convenience.

Everything you need is included, and the components are specifically designed to work together. This can save you time and ensure compatibility.

However, kits may limit your flexibility in terms of choosing individual components, and you may need to upgrade certain parts depending on your energy needs.

Different Types of Solar Panels for Campervans

Monocrystalline Solar Panels

Solar panels on roof top of the van car. Energy saving and production in vehicle

Monocrystalline solar panels are made from a single crystal structure, making them highly efficient.

They perform well in low-light conditions and have a long lifespan.

While they tend to be more expensive than other types, their high efficiency makes them an excellent choice for maximizing power output in limited space.

Flexible Solar Panels

Flexible Solar Panel Portable Electric Power Cable Connector Technology

Flexible solar panels, as the name suggests, can be bent and molded to fit curved surfaces.

They’re lightweight and easy to install, making them a popular choice for campervans and RVs.

However, their efficiency may be slightly lower compared to rigid panels, and they may not be as durable.

Installing Your Camper Van Solar Panels

Choosing the Location for Your Solar Panels

The ideal location for your solar panels is on the roof of your camper van, where they can receive the most sunlight without obstruction.

Consider factors such as shade from trees or buildings and the orientation of your panels for optimal performance.

Installation Process for Fixed Solar Panels

Installing fixed solar panels requires securely mounting them to your camper van roof.

You’ll need to drill holes, attach mounting brackets, and seal any gaps to prevent water leakage.

It’s important to follow manufacturer instructions and consult professional advice if necessary.

Using Portable Solar Panels for Extra Power

If you want additional power or flexibility, you can supplement your fixed solar panels with portable solar panels.

These can be set up separately from your main system and used to charge devices or provide power in shaded areas.

How many watts of solar do I need for my van?

The number of watts of solar you need for your van depends on the amount of energy you use daily.

As a rough estimate, a van lifer might need between 200 to 400 watts of solar power, but this can vary greatly based on your specific needs and energy consumption.

What will a 100 amp solar panel run?

A 100 amp solar panel, assuming it’s producing power for around 5 hours a day, could generate about 500 watt-hours of electricity.

This could power small appliances like a laptop, and LED lights, and charge mobile devices, but wouldn’t be sufficient for larger appliances or systems.

What will a 500-watt solar panel run?

A 500-watt solar panel can run medium-sized appliances and devices.

For example, it could potentially power a small refrigerator, a laptop, and a few LED lights, and charge mobile devices throughout the day.

What will a 3000-watt solar panel run?

A 3000-watt solar panel can run larger household appliances and systems.

This includes refrigerators, air conditioning units, televisions, and multiple smaller devices simultaneously, given optimal sunlight conditions.
