6 Best Cable Routing Guides For Complex Engine Layouts

Wiring a complex engine bay feels like untangling a mess of spaghetti under a spotlight, yet the integrity of your entire mobile system depends on those connections. A single vibration-induced short or heat-melted wire can sideline a journey before it even begins. Proper routing is not merely about aesthetics; it is a critical safety measure for anyone relying on their vehicle as a home.

Disclosure: As an Amazon Associate, this site earns from qualifying purchases. Thank you!

DEI Fire Sleeve & Tape: Best for High-Heat Areas

When running wires near exhaust manifolds or turbochargers, standard plastic loom will melt and fail almost immediately. DEI Fire Sleeve provides the necessary thermal barrier, effectively shielding critical connections from radiant heat that would otherwise brittle the wire insulation. This product is a non-negotiable insurance policy for any electrical run passing within inches of high-temperature engine components.

The silicone-coated fiberglass construction remains flexible while resisting temperatures that would compromise nearly any other material. It is a robust solution for protecting engine sensors and ignition wires in tight, heat-soaked environments. If the build involves a high-performance engine or simply a cramped compartment where heat cannot be escaped, reach for this sleeve.

While it carries a premium price, the trade-off is superior longevity compared to inferior wrap-around products. For critical circuits like main power feeds or electronic control unit wiring, the cost of protection is significantly lower than the cost of a replacement harness. Do not cut corners in the hottest zones of the engine; this is the definitive choice for heat-heavy areas.

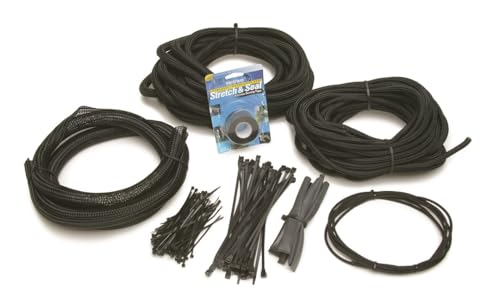

Painless PowerBraid Kit: Best Overall System

Painless PowerBraid is the gold standard for those who demand a factory-level finish alongside long-term durability. Unlike rigid plastic tubing, this expandable braided material follows the natural curves of the wire bundle without creating awkward stiff points. It offers excellent abrasion resistance, which is vital in high-vibration mobile dwellings like camper vans and overlanding rigs.

The real advantage here lies in its ease of use when terminating connectors. Because the braid expands, pulling a plug or a soldered end through the sleeve is significantly easier than with traditional corrugated tubing. It looks cleaner, feels more professional, and prevents that cluttered, “aftermarket” appearance that plagues many amateur builds.

Choose this kit if the goal is a balance between a high-end aesthetic and rugged physical protection. While it does not offer the heat shielding of a specialized sleeve, it is the perfect “workhorse” material for 90% of the wiring in an engine compartment. It represents the best investment for the majority of installers looking for a reliable, permanent routing solution.

Taylor Convoluted Tubing: Best on a Budget

Taylor Convoluted Tubing is the standard for a reason: it is cheap, universally available, and does exactly what it is designed to do. This split-seam plastic tubing acts as a sacrificial barrier against rubbing, vibration, and minor engine fluids. It is the perfect choice for securing long runs of wire that are safely distant from intense heat sources.

Budget constraints often lead to poor wiring habits, but this tubing allows for consistent protection across the entire system without breaking the bank. It is simple to install, requiring only a pair of scissors to cut to length. When the project involves extensive lengths of wiring—such as auxiliary lighting or external sensor arrays—this is the most economical way to keep the harness organized.

However, note that this material can become brittle over several years of exposure to engine bay cycles. It is best used for non-critical, easily accessible runs where future replacement is straightforward. For the budget-conscious builder, it is an essential component, provided it is kept away from the most extreme heat zones.

Kable Kontrol Split Sleeving: Easiest Install

When time is limited and the engine layout is exceptionally convoluted, Kable Kontrol Split Sleeving is a lifesaver. The self-wrapping design eliminates the struggle of fishing long wires through a tube. You simply open the sleeve, lay the wire harness inside, and it snaps shut around the bundle, saving hours of tedious labor.

This product is especially useful for retrofitting existing systems where disconnecting wires for a full sleeving job is impractical. It holds multiple wires tightly together, significantly reducing the profile of the harness and making it easier to route through restricted spaces. The durability is high enough to handle standard automotive engine conditions with ease.

If the project involves a tight timeline or a complex, multi-wire harness that needs frequent maintenance, this is the superior option. It simplifies the build process significantly, allowing for a much cleaner routing strategy. It is highly recommended for anyone who prioritizes ease of installation without sacrificing protection.

T-H Marine Gland Seal: Best for Bulkheads

When a wire harness must pass through a firewall or a bulkhead, a simple hole is an invitation for dust, moisture, and potential chaffing. T-H Marine Gland Seals provide a watertight, secure pass-through that keeps the engine bay isolated from the interior of the living space. They are essential for any build that requires a clean, sealed transition between different areas.

The design is incredibly robust, clamping onto the wires to provide strain relief while sealing the aperture against the elements. A well-installed gland ensures that the wires do not vibrate against the sharp metal edges of the bulkhead, which is a common cause of electrical failure. It is a simple, mechanical fix for a problem that often goes overlooked until a leak or a short occurs.

Investing in these seals demonstrates a high level of build quality. They are inexpensive and provide significant peace of mind, especially in mobile dwellings where water ingress can ruin insulation or interior components. Do not overlook these; they are the mark of an expert-level build.

RamPro Adhesive Clips: Best for Surface Mounts

Even the best-sleeved wire will sag and rub against engine components if it is not properly secured to the chassis. RamPro Adhesive Clips offer a versatile way to mount wire bundles to flat metal or plastic surfaces without needing to drill holes. They are ideal for runs along the firewall or the inner fenders where structural access is limited.

The adhesive backing is surprisingly strong, but it must be applied to a completely clean, degreased surface to be effective. For extra security in high-vibration environments, some builders supplement the adhesive with a small dab of industrial-strength silicone or a mechanical fastener. These clips are best for keeping runs tight, orderly, and away from belts or pulleys.

Choose these when you need to route wires along specific contours of the engine bay that lack factory mounting points. They are a temporary-to-semi-permanent solution that vastly improves the organization of the engine bay. Keep a pack on hand for those finishing touches that turn a messy install into a professional-looking project.

Choosing Your Guide Material: A Quick Primer

Selecting the right material requires understanding the environment in which the wire will live. Plastic convoluted tubing is excellent for general abrasion, but it lacks the thermal and flexibility advantages of braided sleeves. Similarly, high-heat sleeves are specialized tools; using them everywhere is unnecessary, but omitting them where heat is present is dangerous.

Consider the mechanical load as well. Will the wires be subject to heavy vibration, or are they stationary? For moving parts, choose materials that allow for natural flexibility, such as braided sleeving, to avoid stress fractures. Always prioritize the path of least resistance while ensuring the wire is physically separated from sharp metal edges.

Avoid the temptation to use zip-ties as the primary securing method. While convenient, tight zip-ties can act like saw blades on wire insulation when the harness vibrates. Always place a sleeve or tape over the wire bundle before applying a zip-tie to distribute the pressure and prevent internal damage.

Planning Your Route: The Pro’s First Step

The most effective wiring job begins with a plan, not a bundle of cable. Before securing a single wire, map the path from the battery to the component, keeping a healthy distance from heat sources and moving parts. Use painter’s tape to hold wires in their intended path to ensure you have enough slack for engine movement, especially in vehicles with rubber motor mounts.

Think in terms of “main arteries” and “branch circuits.” Group wires that share a common route to avoid a messy, sprawling network. By consolidating wires into a single, well-protected loom, you minimize the risk of damage and make troubleshooting significantly easier if a fault ever occurs.

Always account for engine torque and vibration. A wire that looks secure while the vehicle is parked may come into contact with a hot manifold once the engine is under load. Check clearance by simulating engine movement, and ensure there is at least one inch of gap between the wire and any potential point of contact.

Securing Wires to Prevent Chafing & Damage

Chafing is the silent killer of electrical systems. Even a small vibration can wear through thin insulation over thousands of miles, leading to intermittent failures that are notoriously difficult to track. Every point where a wire bundle touches a chassis edge or another component must be reinforced with extra sleeving or rubber grommets.

Whenever a wire crosses a metal edge, use a bulkhead seal or a rubber grommet to protect the insulation. If a grommet isn’t possible, use multiple layers of high-quality electrical tape or heat-shrink tubing at the contact point as a buffer. Do not rely on the wire’s own insulation to handle the stress of rubbing against a hard surface.

Tension is another critical factor. Wires should never be pulled tight, as vibration will exacerbate that tension and eventually cause the connection to snap or pull away from the terminal. Always maintain a small amount of “service loop” or slack at the connection points to accommodate thermal expansion and contraction.

Essential Tools for a Clean Wiring Job

A professional wiring project requires a specific set of tools that go beyond basic hand tools. A quality set of wire strippers, specifically those designed for automotive gauges, prevents nicking the copper strands—a common cause of future wire breakage. Complement these with a reliable crimping tool that produces a solid, airtight mechanical connection.

Invest in a heat gun for shrinking tubing, rather than using a lighter, which provides inconsistent heat and often scorches the insulation. A variety of zip-tie sizes, specifically those rated for high-temperature and UV resistance, is essential for final cleanup. Finally, keep a supply of split-loom and electrical tape readily available to manage the harness as the project grows.

Never skip the use of a multimeter during the installation process. Checking for continuity and shorts as you go is far easier than trying to pull a harness out of a tight engine bay after it is already installed. These tools do not just build the system; they provide the diagnostic capability required to keep it running for years to come.

Proper wire routing is the ultimate testament to a thoughtful build, separating a reliable home-on-wheels from a constant maintenance headache. By selecting the right materials and following a disciplined routing plan, you create a system that can withstand the rigors of the road. Invest in the right protection now, and you will spend your time enjoying the destination rather than troubleshooting in a parking lot.
