7 Best Adjustable Radar Mounts For Marine Navigation

Navigating open waters or tight channels in low visibility requires absolute trust in a marine radar system, but even the most advanced scanner is useless if pointed at the sky or the water. For liveaboard boaters and long-range cruisers, maximizing small-space efficiency means securing gear that performs flawlessly under heavy motion. Choosing the right adjustable radar mount ensures the radar beam remains parallel to the water’s surface, translating directly to reliable situational awareness when it matters most.

Disclosure: As an Amazon Associate, this site earns from qualifying purchases. Thank you!

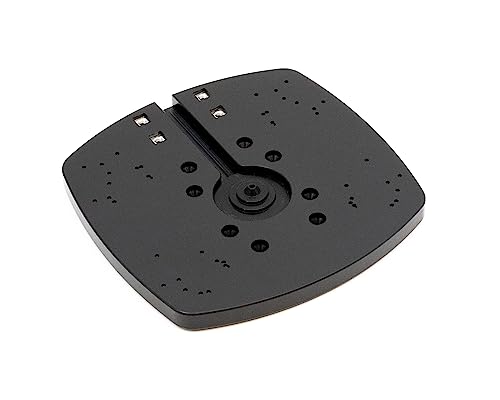

Seaview PMA-57-M1: Best Modular Mount

Small-space living and long-distance boating require adaptability, and the Seaview PMA-57-M1 delivers this through its highly customizable modular design. Rather than replacing the entire mount when upgrading electronics, this system allows users to swap out top plates to accommodate different radar brands. It is a forward-thinking investment for boaters who value longevity and adaptability over disposable, single-use solutions.

The base offers a clean, compact footprint that saves precious arch or cabin top space. Internally routed wiring keeps the deck clutter-free, reducing snag hazards in tight living quarters. Heavy-duty marine-grade aluminum construction, finished with a durable powder coating, ensures it withstands harsh coastal elements.

The main drawback is that the top plate must be purchased separately, which increases the initial setup cost. However, the sheer versatility makes it indispensable for owners who plan to upgrade their marine electronics down the line. If a future-proof, highly customizable mount that adapts to changing technology is the priority, this is the definitive choice.

Scanstrut LMM-1: Best Self-Levelling Mount

When a sailboat heels, the radar beam tilts upward, losing sight of closer targets on the leeward side and scanning the clouds on the windward side. The Scanstrut LMM-1 solves this issue dynamically by using a fine-tuned, gravity-fed self-levelling system. This mechanical design keeps the radar perfectly level with the horizon, regardless of the vessel’s heel angle, without relying on power-hungry electronic sensors.

Mounted directly to the mast, this unit utilizes high-strength dampening to prevent violent swinging during sudden tacks. Weight is always a critical factor aloft, and the LMM-1 balances lightweight structural integrity with heavy-duty construction. The sealed, oil-dampened unit prevents salt crusting and guarantees smooth movement even in freezing conditions.

Because it relies on gravity, extreme mast vibrations or improper rigging tension can occasionally cause minor oscillations. This mount is also priced higher than static options, reflecting its complex internal mechanics. For serious sailors and liveaboard cruisers who spend hours on a heel and require uninterrupted target tracking, there is simply no better self-leveling solution on the market.

Edson Vision Series: Best Custom Mount

For vessels where aesthetics and tailored specifications are paramount, the Edson Vision Series represents the pinnacle of custom mounting systems. This modular tower system allows boaters to select exact heights, light bar attachments, and mounting angles to match their specific cabin top profile. It treats marine navigation gear not just as utility, but as a seamless, high-performance extension of the vessel’s architecture.

Crafted from high-grade marine aluminum and finished with a brilliant gloss white powder coat, it offers superb corrosion resistance. The design accommodates multiple accessories simultaneously, meaning a radar, GPS antenna, and searchlight can all occupy a single, streamlined footprint. This consolidation is a massive win for small-space decks where mounting real estate is strictly limited.

The customization process requires careful planning and measuring, leaving little room for ordering errors. It also carries a premium price tag that may deter budget-conscious boaters. If a clean, high-end look and custom-engineered heights are essential to match a specific vessel layout, this is the system to buy.

Seaview SM-18-U: Best Mast Mount Choice

Mast mounting is the go-to solution for maximizing radar range on sailboats and smaller trawlers where deck space is nonexistent. The Seaview SM-18-U stands out by offering a universal fit profile that hugs the mast tightly, minimizing windage and snagged halyards. Its heavy-duty brackets adjust to fit a wide range of mast profiles, eliminating the need for custom fabrication.

Constructed with robust, solid rivets and high-strength aluminum, it transfers the radar’s weight evenly across the mast section. Safe, internal cable routing protects critical wiring from UV degradation and physical chafing against running rigging. The mount’s compact projection ensures the radar dome remains protected from passing sails during tacks and jibes.

Installing a mast mount requires working aloft or unstepping the mast, making initial installation more labor-intensive than deck mounts. Additionally, it lacks the dynamic self-leveling features of more complex models. For sailboat owners seeking a rock-solid, low-drag, and highly durable static mast mount that fits almost any mast shape, this is the undisputed champion.

Scanstrut LM-US: Best Deck Mount Option

When mast mounting is impractical or undesirable, mounting a radar on the stern deck becomes the logical alternative. The Scanstrut LM-US offers a self-leveling pole mount solution that stands tall at the stern, lifting the radar dome above head height for safety and optimal line of sight. By mounting on a dedicated pole, it keeps dangerous microwave radiation far above the living areas on deck.

Just like its mast-mounted sibling, the LM-US utilizes a precise hydraulic dampening system to react smoothly to the boat’s motion. This keeps the radar horizon flat during extended motoring or heavy rolling under sail. The base mount is highly adjustable, allowing for installation on sloping transoms or cambered decks without custom wedges.

The footprint of a stern pole, along with its supporting struts, takes up valuable real estate on the stern rail. It also adds wind resistance and weight at the very end of the boat, which can affect trim on smaller vessels. However, for long-range cruising couples or liveaboard boaters who want easy maintenance access and continuous self-leveling without climbing a mast, this deck-mount system is unmatched.

Seaview PMF-Y-1: Best Folding Hinge Kit

For boaters navigating inland waterways, canals, or areas with low bridge clearances, overhead height is a constant source of anxiety. The Seaview PMF-Y-1 solves this dilemma by introducing a heavy-duty folding hinge kit directly into the mount tower. With a simple release of a quick-pin, the radar tower folds forward or backward, instantly dropping the vessel’s air draft by several feet.

This mechanical hinge is built to withstand the immense leverage forces exerted by a heavy radar dome in rough seas. It operates smoothly without compromising the structural rigidity of the mount when locked in the upright position. For trailered boats or vessels stored in low-ceiling dry slips, this folding capability saves thousands of dollars in storage fees and prevents catastrophic collisions with bridges.

The folding process must be done manually, requiring someone to step onto the cabin top or arch, which can be hazardous in rough waters. There is also a slight increase in play over time if the hinge pins are not regularly inspected and tightened. If frequent encounters with low bridges or tight storage spaces define your boating routes, adding this folding hinge is a non-negotiable upgrade.

Scanstrut PT2012: Best Composite Tower

Weight high up on a vessel degrades stability, making lightweight mounting solutions highly desirable for powerboats and trawlers. The Scanstrut PT2012 addresses this directly by utilizing high-strength, marine-grade composite materials instead of heavy metal castings. This results in a remarkably lightweight tower that reduces the pendulum effect on the boat’s roll.

The single-piece composite mold features smooth, aerodynamic curves that complement modern boat designs while minimizing wind resistance. Unlike aluminum, composite mounts are entirely immune to galvanic corrosion, paint bubbling, and rust staining. This makes the PT2012 exceptionally low-maintenance, requiring only a quick wash with soapy water to keep it looking pristine.

The composite structure is rigid and cannot be modified or welded if needs change, offering less flexibility than modular aluminum systems. It is also limited to specific radar models, so verifying compatibility is critical before purchase. For powerboaters who prioritize weight savings, zero-maintenance longevity, and sleek modern styling, this composite tower is the perfect fit.

How to Choose the Right Angle for Your Radar

Getting the correct mounting angle is critical because a radar beam is relatively narrow, typically spreading only 12.5 to 25 degrees vertically. When a boat is underway, its bow naturally rises, a behavior known as running trim. If a radar is mounted completely flat, the beam will shoot up into the sky while the vessel is on plane, completely missing targets close to the water’s surface ahead.

To counteract this, static mounts often require a forward tilt to compensate for average running trim. Determining the ideal angle involves observing the vessel’s natural running attitude at cruising speed. Consider these general rules of thumb based on vessel type:

• Powerboats: Typically require a 4-to-6-degree forward tilt to offset bow rise when on plane.
• Sailboats: Focus on lateral leveling to offset heel, making self-leveling mounts highly beneficial.
• Displacement Trawlers: Often run nearly flat, requiring little to no tilt adjustment (0 to 2 degrees).

Adjustable base wedges offer a cost-effective way to fine-tune this angle without purchasing an entirely new mount. Using a wedge allows for incremental adjustments as cruising loads, water tank levels, and typical running speeds change over time. Ignoring this angle calculation results in a dangerous blind spot directly ahead of the bow, rendering the radar ineffective when navigating in thick fog.

Step-by-Step Marine Radar Installation Tips

Installing a marine radar mount requires a systematic approach to ensure both structural integrity and electrical safety. Begin by dry-fitting the mount on the selected surface to verify that the backing plates have adequate clearance from internal wiring, headliners, and structural ribs. Always use a high-quality backing plate or large fender washers under the deck to distribute the dynamic loads generated by the radar’s weight in rough seas.

When drilling mounting holes, chamfer the edges of the fiberglass gelcoat to prevent spider cracking under pressure. Apply a generous bead of marine-grade polyurethane sealant, such as 3M 4200, to both the bolt threads and the underside of the mount base to create a watertight seal. Avoid using permanent adhesives like 3M 5200, as this will damage the deck if the mount ever needs to be removed or replaced.

Route the heavy marine radar cable through the center of the mount, ensuring there are no sharp bends that could damage the internal coaxial or ethernet shielding. Use a dedicated cable gland (deck seal) where the wire enters the cabin or mast to guarantee water cannot seep down the cable jacket. Once wired, boot up the system in an open area to calibrate the heading alignment, ensuring targets on screen match their real-world bearings.

Maintaining Your Mount Against Saltwater

The marine environment is incredibly hostile to metals, making routine maintenance essential to prevent seized fasteners and structural failure. Galvanic corrosion occurs rapidly when stainless steel bolts are threaded directly into aluminum mounts without an insulating barrier. To prevent this chemical reaction, always coat bolt threads with an anti-seize compound like Tef-Gel or Lanocote during assembly.

Wash the mount down with fresh water after every outing to remove salt crystals, which act as abrasives and trap moisture against the metal. Inspect the powder coating or paint finish regularly for signs of bubbling, chipping, or cracking. Any breach in the protective finish must be sanded, primed, and touched up immediately to prevent white rust (aluminum oxide) from creeping beneath the coating.

For adjustable and folding mounts, check the hinge pins, tensioning knobs, and mechanical pivots every season to ensure smooth operation. Lubricate moving parts with a dry Teflon-based marine spray that will not attract airborne dust or salt grit. Regularly checking these small components prevents them from seizing, ensuring that when you need to adjust or fold your radar, the mechanism works flawlessly.

Selecting the ideal adjustable radar mount is a crucial step in securing reliable marine navigation and maintaining safety on the water. By matching the mount‚Äôs design to the vessel’s hull type, running trim, and clearance requirements, boaters can optimize radar performance in all conditions. Investing in high-quality materials and performing routine maintenance ensures that this critical piece of navigation hardware remains steadfast through years of salt, wind, and waves.
