6 Best RV Awning Swivel Joints For Smooth Retraction

There is nothing quite as frustrating as standing in a sudden downpour, watching your RV awning stutter and groan instead of retracting smoothly. A sticky or misaligned swivel joint isn’t just a minor annoyance; it’s a mechanical failure waiting to happen that can leave you stranded with an exposed canopy. Mastering these small but vital pivot points is the difference between a seamless campsite setup and a costly repair bill.

Disclosure: As an Amazon Associate, this site earns from qualifying purchases. Thank you!

Understanding RV Awning Swivel Joint Mechanics

The swivel joint is the literal hinge of your outdoor living experience. It acts as the pivot point where the awning arms articulate, allowing the structure to fold against the side of your RV. When these joints become corroded, bent, or filled with road grit, they create resistance that forces your motor to overwork, often leading to blown fuses or stripped gears.

Understanding the mechanics involves recognizing that these joints are under constant tension. Even when retracted, road vibration and wind resistance put stress on the pivot bolts and bushings. Keeping these points clean and properly lubricated is your first line of defense against premature hardware failure.

Solera Awning Pitch Arm Swivel Joint Assembly

If you are running a Solera power system, the pitch arm swivel is often the first point of failure due to the way it handles adjustable tension. This assembly is designed for those who frequently change their awning pitch to shed water, but that movement invites wear.

This specific assembly is a robust choice if your current joints have developed "slop" or lateral play. It is best suited for owners who prioritize ease of adjustment over a fixed, rigid position. If you find your arms are drooping or failing to lock into place, this is the direct replacement you need to restore factory-level tension.

Carefree of Colorado Altitude Arm Pivot Kit

The Altitude arm series is known for its sleek design, but that aesthetic relies on a precise pivot point that doesn’t tolerate debris well. This pivot kit is a high-quality replacement that addresses the specific binding issues common in the Altitude line.

I recommend this kit for owners who live in dusty or coastal environments where grit often finds its way into the pivot pins. It uses high-grade materials that resist the seizing common with standard factory bolts. If you want a "set it and forget it" solution for your Carefree system, this is the gold standard.

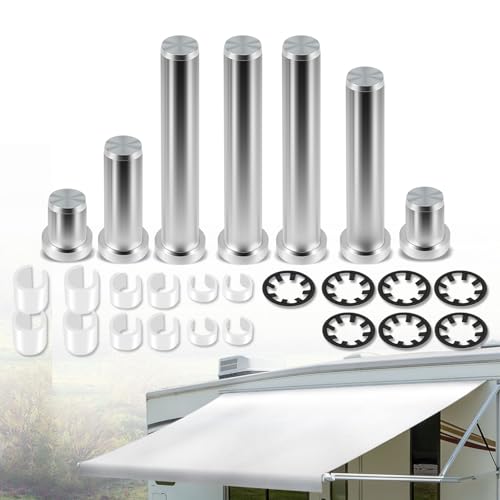

Lippert Components Replacement Pivot Bolt Set

Sometimes, the issue isn’t the entire joint assembly, but the bolt itself becoming deformed or stripped. Lippert’s replacement bolt sets are the unsung heroes of RV maintenance, providing the exact thread pitch and shoulder length required for a smooth swing.

These are essential if you’ve noticed your awning arms "clicking" or catching during the middle of the retraction cycle. They are an inexpensive, high-impact fix that every RV toolkit should contain. If you aren’t sure if your joint is broken, start here—it’s the most common point of mechanical failure.

Dometic 9100 Series Awning Swivel Bracket

The Dometic 9100 series is a classic for a reason, but the swivel brackets can eventually fatigue after years of expansion and contraction. This replacement bracket is designed to handle the weight of manual or power-assisted arms without bowing.

This is the right choice for the long-term owner who plans to keep their rig for another decade. It offers superior structural integrity compared to cheaper aftermarket clones. If your awning feels "loose" at the wall connection, swapping these brackets will provide an immediate sense of stability.

Lippert Solera Power Awning Pivot Arm Bushing

Often, the metal-on-metal friction in a swivel joint is mitigated by a simple plastic or nylon bushing. When these bushings wear down, the metal arms begin to grind, leading to the dreaded "stutter" during operation.

This bushing kit is the most cost-effective way to restore smooth motion to a Solera system. You should opt for this if your awning is making a grinding or squealing noise while moving. It is a small investment that prevents the much more expensive task of replacing the entire arm assembly.

Carefree Travel’R Awning Swivel Joint Upgrade

The Travel’R system is popular, but its swivel joints can feel stiff as the unit ages. This upgrade kit replaces the standard pivot hardware with components designed for smoother, more fluid movement under load.

If you find that your Travel’R awning struggles to finish its retraction cycle without a manual push, this upgrade is for you. It reduces the strain on your motor significantly. It is a highly recommended proactive measure for anyone who uses their awning daily.

Dometic A&E Awning Pivot Hardware Solutions

Dometic’s legacy A&E lines are still found on thousands of rigs, and finding parts can sometimes be a challenge. These hardware solutions are tailored to fit older pivot configurations that are no longer standard in modern builds.

This is the go-to choice for vintage RV enthusiasts or those maintaining older units. It allows you to keep your existing hardware functional without needing to replace the entire awning arm. If you value keeping your rig original, these hardware kits are the perfect solution.

Installing New Swivel Joints for Smooth Motion

Installation is generally straightforward, but it requires a methodical approach to ensure safety. Always use a helper to support the weight of the awning arm before removing any pivot bolts. If you don’t secure the arm, the sudden release of tension can cause the structure to swing unexpectedly.

When installing, ensure the joints are clean and free of old, gummy lubricant. Use a high-quality, dry silicone lubricant on the new pivot points to prevent future grit buildup. Avoid heavy greases that attract dirt, as these will only shorten the lifespan of your new hardware.

Troubleshooting Common Awning Retraction Issues

If your awning still struggles after replacing the joints, check for "racking," where one side of the awning moves faster than the other. This is often an electrical issue or a sign that the arms are slightly out of alignment.

Also, inspect the awning fabric for uneven rolling, which creates uneven tension on the arms. Sometimes the issue isn’t the swivel joint at all, but a crooked roll that puts side-load pressure on the pivot. Always address the fabric alignment before assuming the mechanical joints are the culprit.

Maintaining your awning’s swivel joints is a small task that pays massive dividends in the longevity of your RV’s exterior components. By addressing friction and wear early, you avoid the headache of a stuck canopy in the middle of a trip. Keep your hardware clean, your bolts tight, and your awning will provide years of reliable shade for your nomadic lifestyle.
