6 Best Generator Oil Pressure Gauges For Industrial Use
Ensure peak generator performance with our top 6 industrial oil pressure gauges. Learn how to select durable, precise monitors for reliable engine maintenance.
There is nothing quite like the sinking feeling of hearing your generator stumble while you are miles away from the nearest repair shop. Monitoring your oil pressure isn’t just about data; it is the difference between a minor maintenance hiccup and a catastrophic engine failure in the middle of a remote site. These gauges are the silent sentinels of your off-grid power system, and choosing the right one is a vital investment in your independence.
|
|
|
|
$59.99
|
$68.99
|
$60.89
|
Disclosure: As an Amazon Associate, this site earns from qualifying purchases. Thank you!
Understanding Oil Pressure Needs for Generators
When you are living off-grid, your generator is the heartbeat of your daily operation. Oil pressure is the critical metric that tells you if your engine’s internal components are being properly lubricated, preventing the metal-on-metal friction that leads to immediate, permanent damage. A sudden drop in pressure is often the first sign of a failing oil pump or a critical leak, giving you the seconds you need to shut down before the engine seizes.
Unlike the digital displays on modern passenger cars, industrial generators often require robust, analog, or high-grade electrical gauges that can withstand constant vibration and temperature swings. You aren’t just looking for a number; you are looking for a reliable trend. If your pressure is fluctuating or sitting consistently low, you need a gauge that provides a clear, unmistakable warning so you can take action before the lights go out.

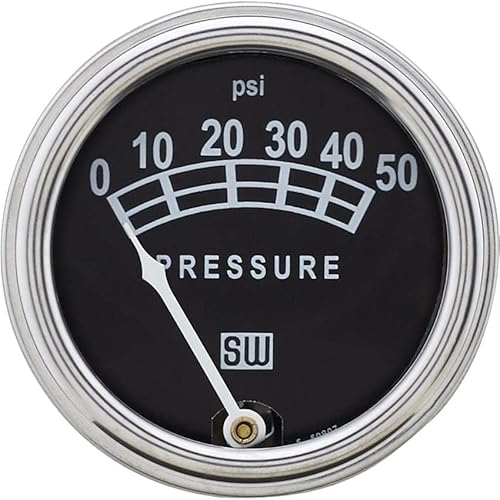

Stewart-Warner 82648 Mechanical Pressure Gauge
If you value simplicity and absolute reliability over fancy digital readouts, the Stewart-Warner 82648 is your go-to. This is a classic mechanical gauge, meaning it uses a direct line to measure pressure without needing a power source or a complex sensor. Because it doesn’t rely on electricity, it will keep working even if your generator’s battery is completely dead.
This gauge is perfect for the "keep it simple" crowd who wants to see exactly what is happening inside the engine block. It is rugged, easy to mount, and built to survive the harsh, high-vibration environment of a mobile or industrial generator setup. If you want a no-nonsense tool that will likely outlast the engine it is monitoring, this is the one to pick.
Datcon 102555 Heavy-Duty Industrial Gauge
Datcon has built a reputation for making gear that survives in the mining and construction sectors, and the 102555 is a prime example of that pedigree. This gauge is designed for high-shock applications where lesser components would rattle apart in days. It features a sealed housing that resists moisture and dust, making it an excellent choice for outdoor generators exposed to the elements.
This gauge is for the professional who needs a "set it and forget it" solution. Its readability is exceptional, even in direct sunlight, and the internal components are shielded against the electrical noise common in generator housings. If your generator lives in a dusty, high-vibration environment, the Datcon is a premium choice that justifies its price through sheer longevity.
Murphy Swichgage 20P-100 Industrial Series
The Murphy Swichgage is more than just a gauge; it is a safety system. What sets this unit apart is its integrated limit switch, which can be wired to automatically shut down the generator if the oil pressure hits a dangerously low threshold. For those running a generator unattended, this feature is essentially an insurance policy against total engine loss.
I recommend this for anyone who runs their generator while away from their living space or during the night. It bridges the gap between passive monitoring and active protection. If you cannot be there to watch the needle, let the Murphy Swichgage take the responsibility of protecting your engine.
VDO 360-009 Vision Series Pressure Gauge
The VDO Vision series is widely considered the gold standard for clarity and consistent performance. These gauges are known for their high-quality internals and excellent backlighting, which makes them incredibly easy to read at a glance, even in the middle of a dark night. The movement is smooth and dampened, preventing the needle from jittering due to engine vibration.
This is a great choice for those who want a blend of industrial durability and aesthetic refinement. It feels like a high-quality piece of equipment and performs with a level of precision that makes troubleshooting much easier. If you want a gauge that looks professional and provides rock-solid data, the VDO is a fantastic investment.
Equus 8248 Mechanical Oil Pressure Gauge
The Equus 8248 is the most accessible option on this list, offering a reliable, mechanical solution at a price point that fits almost any budget. It is straightforward to install and comes with the necessary hardware for most standard generator setups. While it lacks the extreme industrial hardening of the Datcon or Murphy units, it is perfectly capable for standard, well-maintained generators.
This gauge is ideal for the DIYer who is upgrading an older generator or building a budget-conscious power system. It does exactly what it promises without unnecessary complexity. If you are just starting your off-grid journey and need a dependable gauge that won’t break the bank, the Equus is a solid, practical choice.
WIKA 213.53 Industrial Pressure Transducer
WIKA is a leader in industrial instrumentation, and the 213.53 is a glycerin-filled pressure gauge designed for high-vibration applications. The glycerin filling acts as a shock absorber for the needle, providing a steady reading even when the engine is running at full load. This is a level of engineering that surpasses standard automotive parts.
This gauge is for the user who demands industrial-grade precision and wants to eliminate needle bounce entirely. The construction quality is top-tier, and it is highly resistant to the corrosive environments often found in marine or coastal off-grid settings. If you want the most stable, accurate reading possible, the WIKA 213.53 is the definitive choice.
Critical Installation Tips for Mobile Power
- Use Braided Lines: Always replace cheap plastic tubing with braided stainless steel lines to prevent catastrophic oil leaks due to heat or vibration.
- Vibration Isolation: Use rubber grommets or vibration-dampening mounts when installing the gauge housing to extend the life of the internal components.
- Proper Grounding: For electrical gauges, ensure a clean, dedicated ground wire directly to the engine block to avoid erratic readings caused by electrical interference.
Installation is where most people go wrong, and in a mobile setup, movement is the enemy. Never mount your gauge directly to the engine block; use a remote mounting bracket to isolate it from the harshest vibrations. Always double-check your fittings for leaks after the first hour of runtime, as thermal expansion can loosen connections that seemed tight during the initial install.
Ensuring Accuracy in Harsh Off-Grid Climates
Extreme temperatures can wreak havoc on mechanical gauges, causing the internal fluids or springs to behave unpredictably. If you are living in a high-desert environment or a freezing mountain climate, verify the operating temperature range of your chosen gauge. Some units may require a specific type of oil or fluid to remain accurate during sub-zero startups.
Furthermore, condensation inside the gauge housing can lead to fogging or internal corrosion. Opt for sealed, moisture-resistant units if you live in high-humidity areas. Regularly check the gauge face for any signs of moisture build-up; if you see droplets inside the glass, it is time to replace the seal or the gauge entirely to prevent a false reading.
Routine Maintenance for Generator Gauges
Your gauge is only as good as the sensor or line feeding it. During your routine oil changes, inspect the pressure line for any signs of fraying, hardening, or weeping oil. If you are using an electrical sender, check the wire connections for corrosion, as a loose or dirty terminal can cause the gauge to jump or read zero, causing unnecessary panic.
Treat your gauges as part of your engine’s maintenance schedule, not as an afterthought. Give the glass a quick wipe to ensure visibility and verify that the needle moves smoothly when the engine is primed. By keeping the monitoring system clean and tight, you ensure that you are always getting the honest truth from your generator.
Investing in a high-quality oil pressure gauge is one of the smartest preemptive moves you can make for your off-grid power system. By choosing hardware that matches your specific environment—whether that is a rugged mechanical unit or a sophisticated shutdown system—you are buying peace of mind. Keep your gauges clean, check your connections often, and you will never be left in the dark by a preventable engine failure.
Frequently Asked Questions (FAQs)
What is an industrial generator oil pressure gauge?
An industrial generator oil pressure gauge is a dedicated monitoring instrument that measures the internal lubricating oil pressure inside heavy-duty power generation engines. Operating in units of pounds per square inch (PSI) or bar, these gauges provide real-time readings to operators. They alert maintenance personnel to lubrication failure before bearings, crankshafts, or pistons suffer friction damage. Most industrial units monitor ranges between 0 and 100 PSI (0 to 7 bar).
What is normal oil pressure reading on a diesel industrial generator?
Normal oil pressure on a diesel industrial generator typically ranges between 35 and 65 PSI (2.4 to 4.5 bar) during standard operating load. At cold startup, pressure may peak between 60 and 80 PSI before the engine warms up, then drop to 20 to 30 PSI while idling. Technicians should verify the equipment manual, because large prime-power engines from Cummins, CAT, or Kohler specify exact minimum thresholds for automated emergency shutdown.
How do you install a generator oil pressure gauge on an industrial unit?
Installing an industrial generator oil pressure gauge requires threading an oil pressure sender or capillary line directly into the engine block’s dedicated oil gallery port. First, shut down the generator and disconnect the starting battery. Remove the factory port plug using an open-end wrench, apply high-temp thread sealant to the gauge fitting, and torque it to manufacturer specifications. Finally, route the wiring harness or high-pressure tube to your control panel and run the generator to check for leaks.
How do you test a generator oil pressure gauge for accuracy?
Testing a generator oil pressure gauge requires teeing a calibrated mechanical test gauge into the engine oil port alongside the primary gauge. Start the generator engine and compare the panel reading against the calibrated reference meter across idle, half load, and full rated load. If the panel gauge deviates by more than 5 percent, disconnect the sender and test electrical resistance using a digital multimeter before replacing the gauge assembly.
Mechanical vs electrical generator oil pressure gauge which is better for continuous industrial use?
Electrical generator oil pressure gauges are generally better for industrial use because they route wire signals to remote panels rather than pressurized hot oil lines. Mechanical gauges deliver high precision without reliance on electrical power, but running high-pressure oil lines into a control cabin creates fire and leak hazards. Electrical systems convert pressure into variable resistance at the block, making them safer and easier to integrate into automated control systems.
How much does a replacement industrial generator oil pressure gauge cost?
Replacement industrial generator oil pressure gauges generally cost between $40 and $350 depending on whether the unit is analog mechanical or digital CAN-bus compatible. Basic heavy-duty analog gauges from brands like Datcon or Murphy cost around $45 to $95. Sophisticated digital programmable gauges with built-in alarms, 4-20mA telemetry outputs, or stainless steel oil pressure senders run from $150 to upwards of $400, excluding commercial labor charges.
Why is the generator oil pressure gauge reading zero while the engine is running?
A zero reading on a running generator oil pressure gauge usually indicates a loose sender wire, a clogged gauge port, a dead gauge, or severe oil loss. Immediately hit the emergency stop button to prevent catastrophic seizure. Check the engine dipstick first to verify oil level. If fluid levels are sufficient, inspect the sender wire terminal for corrosion or grounding faults using a multimeter before suspecting an oil pump or relief valve failure.
Is a digital generator oil pressure gauge worth upgrading to for commercial standby facilities?
Upgrading to a digital generator oil pressure gauge is worth the investment for commercial standby facilities because it supports automated remote shutdowns and continuous telemetry. Unlike dial gauges requiring physical visual checks, digital units feed 0-5V or Modbus data into facility building management systems. Facility managers can detect subtle oil pressure degradation over weeks rather than discovering a blown bearing during a power outage, justifying the higher hardware cost.
