Towing a heavy tiny home or a loaded-down travel trailer down a steep mountain pass will quickly teach you the value of reliable trailer brakes. When thousands of pounds are pushing against your tow vehicle, the backing plates holding your brake shoes are the unsung heroes keeping everything under control. Investing in the right trailer brake backing plate ensures that every stop is predictable, smooth, and, above all, safe.

Disclosure: As an Amazon Associate, this site earns from qualifying purchases. Thank you!

Dexter Axle 12-Inch Self-Adjusting Brakes

Dexter Axle is widely regarded as the gold standard in the towing industry, and their 12-inch self-adjusting brakes live up to that reputation. These electric brakes are designed for 5,200 to 7,000-pound axles, making them perfect for heavy tiny houses on wheels or substantial fifth-wheels. The forward-self-adjusting feature ensures the brake shoes maintain optimal alignment with the drum as they wear down over time. This eliminates the tedious chore of manual brake adjustments under the trailer chassis.

The backing plate itself is built with durable, heavy-gauge steel designed to resist warping under high-heat braking scenarios. When descending long, steep grades with a heavy rig, heat buildup is the primary enemy of braking efficiency. This assembly dissipates heat remarkably well, reducing the risk of brake fade when you need stopping power the most. Additionally, the pre-assembled nature of these plates means the magnets, shoes, and springs are already mounted, saving hours of frustration during installation.

This option is a premium choice, which means it comes with a slightly higher price tag than manual-adjusting alternatives. However, the tradeoff is a significant reduction in long-term maintenance hassle and more consistent stopping power. For those towing heavy, high-profile loads through mountainous terrain on a regular basis, the peace of mind is worth every penny. If you want a set-it-and-forget-it solution from a legendary brand for your 7,000-pound axles, this is the exact kit you need.

Lippert Components 12-Inch Electric Brakes

Lippert Components is another titan in the RV and trailer industry, known for producing highly reliable OEM and aftermarket parts. Their 12-inch electric brakes are designed to fit standard 5,200 to 7,000-pound utility and RV axles. These units feature high-grade friction material on the brake shoes, which ensures smooth engagement and minimal shuddering during sudden stops. The backing plate is coated with an e-coat finish that resists rust and road debris corrosion.

While these are manual-adjusting brakes, they offer a highly tactile and reliable mechanical design. Some towers actually prefer manual adjustments because it forces them to inspect their brake assemblies regularly, catching minor issues before they become catastrophic failures. The adjustment slots on the back of the plate are easily accessible and protected by rubber dust plugs to keep road grime out.

The main tradeoff here is the requirement for periodic manual adjustments, usually every 3,000 to 5,000 miles depending on usage. If you are comfortable with basic mechanical upkeep and want a robust, cost-effective brake plate that matches OEM specifications perfectly, Lippert is an outstanding choice. It is the ideal option for budget-conscious RVers who prioritize a proven, straightforward mechanical design over automated features.

Southwest Wheel 12-Inch Cast Backing Plate

For heavy-duty applications where standard stamped steel plates might flex under extreme loads, Southwest Wheel offers a rugged 12-inch cast iron backing plate. Stamped steel is fine for average loads, but cast iron provides unmatched rigidity and heat sink capabilities. This heavy-duty construction prevents the backing plate from twisting or distorting under severe braking torque. This makes it an exceptional choice for heavy equipment haulers or custom-built triple-axle tiny home trailers.

This assembly features standard electric operations and fits most 5,200 to 7,000-pound axles with a standard 5-bolt flange. The added weight of the cast iron structure helps absorb vibration, resulting in a noticeably quieter ride and less feedback through the tow vehicle’s brake controller. Furthermore, the robust cast design offers superior protection against physical damage from rocks, branches, or road debris on unpaved off-grid roads.

The compromise with cast plates is their increased weight and a slightly more rigid installation process, as there is absolutely no flex in the plate during mounting. It is also a manual-adjust system, requiring manual intervention to keep the shoes properly gapped. However, if your travels take you off-road or you are hauling near your trailer’s maximum weight capacity, this ultra-tough cast backing plate is the most durable insurance policy you can buy.

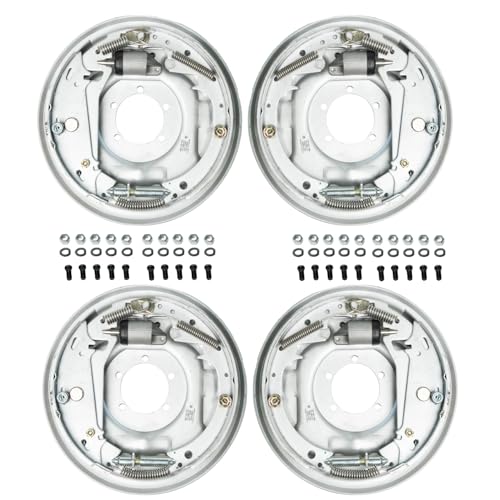

AP Products 12-Inch Hydraulic Brake Plates

Electric brakes are the industry standard, but hydraulic surge brakes have a dedicated place, especially for boat trailers or heavy utility trailers that encounter water. AP Products offers a 12-inch hydraulic brake plate assembly that delivers exceptional stopping force without relying on electrical connections at the axle. These plates are engineered to withstand the harsh environments of boat ramps and salty coastal air, thanks to corrosion-resistant plating.

Hydraulic systems utilize a master cylinder in the trailer tongue to apply pressure to the wheel cylinders, pushing the brake shoes against the drum. This design provides proportional braking that naturally matches the deceleration of the tow vehicle. However, hydraulic brakes require more maintenance than electric setups, including monitoring brake fluid levels and bleeding the lines periodically.

There is also the reality that hydraulic surge brakes do not offer the manual override capability that electric brake controllers provide in the cab. But for those towing heavy loads in wet climates or frequently backing a trailer into water, electrical short circuits are a constant threat. If you need a powerful, water-resistant braking solution for a heavy marine rig or an off-grid trailer crossing wet terrain, these AP Products hydraulic plates are your best bet.

Dexter 10-Inch Nev-R-Adjust Brake Assembly

Not every heavy trailer requires massive 12-inch brakes; many medium-duty travel trailers and tandem-axle tiny homes utilize 3,500-pound axles that require 10-inch plates. The Dexter 10-inch Nev-R-Adjust brake assembly brings premium self-adjusting technology to this incredibly popular axle size. As you drive, these brakes automatically adjust to maintain proper clearance and even wear, ensuring balanced braking across all wheels.

Proper brake balance is crucial for lighter or medium-weight trailers, as uneven braking can easily cause a trailer to sway or skid on wet pavement. The Nev-R-Adjust system ensures that both sides of the axle pull with equal force during an emergency stop. The backing plates come fully assembled with the magnet, shoes, and springs pre-aligned, making a DIY swap quick and straightforward.

The primary tradeoff is the initial cost, which is higher than basic 10-inch manual assemblies. However, the elimination of manual adjustments saves significant time and prevents premature brake shoe wear caused by improper spacing. If you are towing a mid-sized trailer or a tandem-axle tiny home on 3,500-pound axles and want maximum safety with zero maintenance headaches, this is the premium solution to buy.

Southwest Wheel 10-Inch Electric Assembly

For those looking for a dependable, no-nonsense braking solution for 3,500-pound axles without a premium price tag, the Southwest Wheel 10-inch electric assembly is a top contender. This manual-adjusting brake plate is built to strict industry standards, offering reliable stopping power for utility trailers, teardrop campers, and lightweight mobile dwellings. The stamped steel backing plate is durable and fits standard 4-bolt flange patterns perfectly.

Because it uses a manual adjustment mechanism, this assembly is simpler and has fewer moving parts that could potentially fail over time. For off-grid adventurers who travel far from repair shops, simplicity is often a major asset. Replacing a spring or manual adjuster on this unit is straightforward and utilizes widely available, inexpensive parts.

The obvious downside is that you must manually adjust the brakes using a brake spoon tool at regular intervals to maintain stopping power. If neglected, braking performance will degrade as the shoes wear down. But if you are a hands-on owner who doesn’t mind routine maintenance and wants a highly affordable, reliable, and easily repairable brake assembly, this Southwest Wheel kit is an unbeatable value.

TruRyde 12-Inch Self-Adjusting Brake Plate

TruRyde has carved out a solid reputation in the towing community by offering high-quality, CSA-certified trailer components that rival OEM parts at a more accessible price point. Their 12-inch self-adjusting brake plate is designed for 5,200 to 7,000-pound axles, offering a direct alternative to higher-priced name brands. The self-adjusting mechanism keeps the brakes performing at their peak, minimizing stopping distances during heavy towing.

The backing plate is constructed from heavy-duty steel and features a specialized coating to guard against rust and road grime. TruRyde pays close attention to the quality of their magnets and friction materials, ensuring smooth engagement without grabbing or locking up prematurely. This predictable braking performance is vital when towing top-heavy loads like tiny houses, where sudden weight shifts can be dangerous.

While some purists prefer sticking strictly to legacy brands like Dexter, TruRyde offers comparable durability and performance for a fraction of the cost. The main tradeoff is brand recognition, but the actual performance and build quality stand up to rigorous real-world towing demands. If you want the safety and convenience of self-adjusting 12-inch brakes but need to keep your renovation or build budget under control, TruRyde is the smart choice.

How to Choose the Right Size for Your Rig

Choosing the correct brake backing plate size is not a matter of preference; it is dictated entirely by your trailer’s axle capacity and mounting flange pattern. The two most common sizes for recreational and light commercial trailers are 10-inch and 12-inch assemblies. Generally, 10-inch brakes are designed for 3,500-pound axles, while 12-inch brakes are reserved for heavier 5,200, 6,000, and 7,000-pound axles.

To determine what you need, look at the metal tag or stamping on your trailer axle tube to identify its weight rating. Additionally, you must verify the bolt pattern on your axle’s brake flange. A standard 3,500-pound axle typically uses a 4-bolt flange, whereas heavier axles rating 5,200 pounds and up almost universally use a 5-bolt or 5-hole flange pattern. Measuring the diameter of your current brake drum will also give you an instant confirmation of the size required.

Never attempt to mismatch sizes or force a backing plate onto an incompatible axle flange. Doing so can lead to catastrophic brake failure, uneven braking, or severe damage to your spindle and hub. If you are building a custom tiny home or rebuilding an old trailer, matching your expected total loaded weight to the appropriate axle and brake size is the most critical safety decision you will make.

• Axle Weight Rating: Match 10-inch brakes to 3,500-lb axles, and 12-inch brakes to 5,200‚Äì7,000-lb axles.
• Flange Bolt Pattern: Confirm whether your axle flange has a 4-bolt or 5-bolt mounting pattern.
• Drum Diameter and Width: Measure the internal diameter and depth of your brake drum to ensure the new shoes will fit flush.
• Left vs. Right Orientation: Brake backing plates are side-specific; ensure you purchase matching pairs or correct individual sides.

Step-by-Step Installation for Heavy Towing

Installing a complete pre-assembled brake backing plate is far easier than rebuilding individual shoes and springs on an old plate. To begin, safely park the trailer on a level surface, chock the tires on the opposite side, and lift the frame using a heavy-duty jack. Secure the trailer on robust jack stands before removing the wheel and the grease cap, cotter pin, spindle nut, and outer bearing to slide the brake drum off.

Once the drum is off, locate the wires on the back of the existing backing plate and snip them, leaving enough slack for splicing later. Remove the four or five bolts holding the backing plate to the axle flange, slide the old unit off, and thoroughly clean the spindle and flange area. Mount the new backing plate assembly, ensuring the “Left” or “Right” designation matches the side of the trailer you are working on, and torque the mounting bolts to the manufacturer‚Äôs specifications.

Next, connect the two magnet wires to the trailer’s main brake wiring harness using heat-shrink butt connectors to protect the connections from moisture. Slide the drum back onto the spindle, properly packing and seating the inner and outer bearings, and secure the spindle nut according to standard bearing-adjustment procedures. Finally, if you installed manual brakes, adjust them until you hear a slight drag when spinning the drum, then reinstall the wheel and repeat the process on the other side.

Maintenance Tips for Long-Lasting Brakes

Heavy towing puts immense stress on trailer brakes, making regular maintenance essential for safety and longevity. For manual-adjusting brakes, inspect and adjust the shoe clearance every 3,000 miles or at the start of every towing season. Even with self-adjusting brakes, it is wise to pull the drums annually to check the thickness of the friction material on the brake shoes. If the lining has worn down to less than 1/16 of an inch, replace the shoes or the entire backing plate assembly immediately.

Keep a close eye on the performance of your brake magnets, which can wear unevenly or develop flat spots over time. A worn magnet will fail to pull smoothly against the drum armature face, leading to weak or grabbing brakes. Additionally, always protect your brake assemblies from excessive moisture, and if you must park your trailer for extended periods, park on blocks to prevent the brake shoes from rusting or seizing to the drums.

Wiring integrity is another common failure point that is often mistaken for mechanical brake trouble. Periodically crawl under the trailer to inspect the wiring running along the axle for cracks, fraying, or loose connections. Wrapping exposed wires in protective loom and securing them tightly to the axle tube prevents them from snagging on road debris or wearing through from friction.

• Annual Drum Removal: Inspect brake shoes for wear, cracking, or contamination from grease or oil.
• Magnet Inspection: Check the magnet face for flat spots, scoring, or exposed copper coils.
• Wire Protection: Use marine-grade heat-shrink connectors and protective loom to seal all electrical splices.
• Lube Moving Parts: Apply a tiny dab of high-temperature brake grease to the backing plate contact points behind the shoes, being extremely careful not to get grease on the friction surfaces.

Upgrading and maintaining your trailer brake backing plates is one of the most effective ways to ensure your alternative living journey remains safe and stress-free. Whether navigating mountain passes with a custom tiny home or traveling coastal roads with a heavy fifth-wheel, reliable brakes provide the control needed to tow with confidence. Choose the right size, install them with care, and enjoy the peace of mind that comes with superior stopping power.
