When you are living in a space where every square inch counts, a simple flick of a switch can be the difference between a functional home and a complete electrical headache. Rotary switches are the unsung heroes of tiny living, offering a tactile, reliable way to manage complex power circuits without the clutter of a massive breaker panel. Choosing the right one isn’t just about price; it’s about ensuring your off-grid system stays powered when you need it most.
Disclosure: As an Amazon Associate, this site earns from qualifying purchases. Thank you!
Selecting Rotary Switches for Tiny Home Power
In a tiny home or van conversion, you aren’t just flipping lights; you are managing battery banks, solar arrays, and shore power transitions. A rotary switch provides a physical disconnect that is far more durable than a standard toggle switch, especially when dealing with the vibrations of a moving vehicle. You need components that can handle the specific voltage and amperage of your setup without failing under the stress of daily cycles.
Focus on the "make-before-break" or "break-before-make" contact configurations depending on your needs. For simple power selection, a break-before-make switch ensures you don’t accidentally bridge two power sources, which could lead to a catastrophic short. Don’t let the low price of some industrial switches fool you; always verify the DC rating, as many affordable options are optimized for AC and may fail prematurely under DC loads.

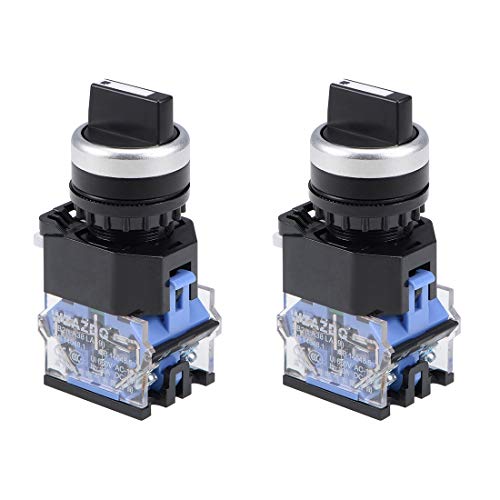

Uxcell 3-Position Selector: The Budget Choice
If you are building a basic control panel on a tight budget, the Uxcell 3-Position Selector is a solid starting point. It’s compact, fits easily into standard electrical boxes, and provides a clear, tactile "click" between settings. It’s perfect for switching between two different light zones or selecting between two small DC power sources.
However, keep in mind that this is an entry-level component. It isn’t designed for heavy-duty battery isolation or high-amperage motor loads. If your project is a simple interior lighting setup or a low-power fan controller, this switch is a great way to save money without sacrificing basic functionality.
Blue Sea Systems 9001E: Battery Switch Standard
When it comes to your main battery bank, you shouldn’t cut corners. The Blue Sea Systems 9001E is the industry standard for a reason: it’s built to withstand the harsh, vibrating environment of a mobile dwelling. It features a rugged design that is ignition-protected and designed specifically for high-amperage DC applications.
This switch is the gold standard for anyone who needs to isolate a house battery from a starter battery or shut down the entire system for maintenance. It is significantly more expensive than the other options on this list, but the peace of mind it offers regarding safety and longevity is well worth the investment. If you are serious about your off-grid power, this is the switch you buy.
Baomain 2-Position Switch: Best for Lighting
The Baomain 2-Position Switch is an excellent "set it and forget it" component for lighting circuits. Its simple ON/OFF functionality is reliable, and the mounting depth is shallow enough to fit behind thin interior wall panels. It’s a clean, industrial-looking option that adds a professional touch to your custom control board.
I recommend this for DIYers who want a robust feel for their light switches rather than the flimsy plastic rockers you find at big-box hardware stores. It handles standard 12V LED lighting strings with ease. If you want a clean, minimalist look for your cabin’s light switches, this is the right choice for the job.
CNC Electric LW26: Reliable Industrial Option
The CNC Electric LW26 is a workhorse that bridges the gap between budget-friendly and industrial-grade. It feels substantial in the hand and offers a variety of contact configurations that can handle more complex wiring scenarios. It’s a popular choice for those who need to manage multiple inputs or outputs in a single, centralized location.
Because it is an industrial component, the terminals are easy to access and secure with standard wire lugs. It’s a bit bulkier than the smaller switches, so ensure you have the depth in your cabinet before committing. If you need a versatile, mid-range switch that can handle a variety of tasks, this is a dependable pick.
Nilight 4-Position Switch: Best for DC Loads
Control your vehicle's turn signals with this 4-pin SPDT rocker switch. Featuring an ON-OFF-ON function and illuminated laser-etched arrow patterns for easy operation in any light. Rated 12V/20A and 24V/10A, it's ideal for cars, RVs, and trailers.
Nilight has become a go-to name for off-grid enthusiasts, and their 4-position rotary switch is perfect for managing multiple DC loads. Whether you need to toggle between different power levels for a heater or select between different battery monitoring modes, this switch provides the versatility you need. It’s compact, well-labeled, and very easy to install.
The build quality is surprisingly good for the price point, making it a favorite for those who are constantly tweaking their systems. While it’s not meant for the main battery disconnect, it is perfect for secondary circuit management. If you need to switch between four different low-power devices, you won’t find a better balance of price and performance.
Sourcingmap 3-Phase Switch: Heavy Duty Pick
If your build involves heavier equipment—like a high-draw water pump or an inverter transfer switch—the Sourcingmap 3-Phase rotary switch is the heavy-duty solution you need. It is designed to handle higher current loads and provides a much more robust physical connection than the smaller selector switches. It is built to last and can handle the occasional power surge without arcing.
This switch is definitely overkill for a simple LED circuit, but it is exactly what you want for your heavy-duty electrical backbone. It requires a bit more space for installation, so plan your electrical bay accordingly. If you have a high-draw system that requires a reliable, heavy-duty disconnect, this is the one to choose.
Key Considerations for Off-Grid Wiring
When wiring your rotary switches, always use appropriately sized wire for the amperage of the circuit. A common mistake is using thin-gauge wire for a switch that is rated for high amps; the switch might survive, but the wire will overheat. Always include a fuse or circuit breaker between your power source and the rotary switch to protect against shorts.
- Labeling: Always clearly mark your switch positions so you don’t accidentally leave a high-draw appliance running.
- Strain Relief: Ensure your wires are secured so that vibrations don’t pull them loose from the switch terminals.
- Voltage Drop: Keep your wire runs as short as possible to minimize power loss, especially when dealing with 12V systems.
Ensuring Safety in Compact Electrical Bays
In a tiny home, your electrical bay is often tucked into a tight corner or under a bed. Because these spaces are cramped, you must ensure that all electrical connections are insulated and protected from accidental contact. Never leave exposed terminals, especially when working with high-capacity battery systems where a dropped tool could lead to a dangerous arc.
Consider mounting your rotary switches on a non-conductive backplane, such as a piece of high-density plastic or treated wood. This prevents the switch housing from becoming a path for stray current. Always maintain a clear, unobstructed path to your main disconnect switch so you can kill the power in an emergency without digging through a pile of gear.
Maintenance Tips for Mobile Rotary Switches
Even the best rotary switches can suffer from oxidation or loose connections over time, especially in the high-humidity, high-vibration environment of a mobile home. Once a year, perform a visual inspection of your electrical bay. Give the mounting screws a quick check for tightness and ensure there is no discoloration on the wire terminals, which can indicate a loose connection or heat buildup.
If a switch begins to feel "gritty" or difficult to turn, it may be time to replace it rather than trying to clean it. Avoid spraying lubricants inside the switch housing, as this can attract dust and eventually cause the contacts to fail. A clean, dry, and tight electrical system is the foundation of a stress-free off-grid lifestyle.
Selecting the right rotary switch is an investment in the long-term reliability of your tiny home’s electrical heart. By balancing your specific amperage needs with the physical constraints of your space, you can create a system that is both safe and simple to operate. Take the time to install these components correctly, and they will serve you reliably for years to come.
