7 Rotary Switches With Integrated Breakers That Support Self-Reliance

You’re a hundred miles from the nearest town when your 12V fridge cuts out, and the lights won’t turn on. In a self-reliant system, this isn’t just an inconvenience; it’s a critical failure that needs a fast, safe diagnosis. The key to that isn’t just having power, but having control over it. This is where integrated rotary switches become the unsung heroes of your electrical system, combining master control and circuit protection into a single, robust component.

Disclosure: As an Amazon Associate, this site earns from qualifying purchases. Thank you!

The Core of a Self-Reliant Electrical System

A rotary switch with an integrated breaker or fuse is exactly what it sounds like: one device that does two crucial jobs. It gives you a heavy-duty, physical ON/OFF switch to isolate entire sections of your electrical system. At the same time, it provides the overcurrent protection—the safety net—that prevents a short circuit from turning into a fire.

Think of it as the main gatekeeper for your power. In a van, RV, or cabin, this single component can serve as your main battery disconnect and the primary fuse for your entire DC system. This combination simplifies wiring, which means fewer failure points. It also saves an incredible amount of space in a panel where every square inch counts.

The main decision you’ll face is between a resettable circuit breaker and a replaceable fuse. Breakers offer convenience; just flip a switch to reset it. Fuses are mechanically simpler and often have higher interrupt ratings, meaning they can handle more catastrophic short circuits safely. I lean toward fuses for main battery protection because they are dead simple and reliable, but breakers are undeniably handy for individual circuits like a water pump that might occasionally jam and trip its protection.

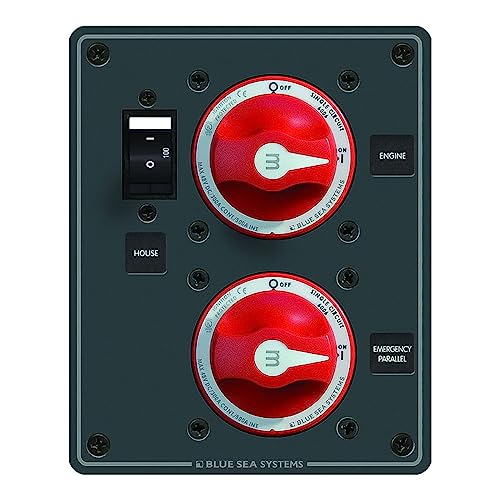

Blue Sea Systems 8080: Marine-Grade DC Control

When you need to manage a handful of critical DC circuits from a central point, the Blue Sea 8080 panel is a gold standard. It combines a hefty battery selector switch with space for up to three of their A-Series circuit breakers. This isn’t just a switch; it’s a compact command center for your rig’s DC power.

Imagine this mounted right inside the door of your camper. One turn of the big red knob disconnects your entire house battery bank, ensuring no parasitic draw while in storage. The adjacent breakers control your "always on" circuits like the fridge, a CO detector, and maybe your USB charging ports. It’s all clearly labeled and accessible.

The "marine-grade" label isn’t just marketing. These units are built with tin-plated copper buses and stainless steel hardware to resist the corrosion and constant vibration that are facts of life on the road or water. You pay a bit more for Blue Sea gear, but you’re buying peace of mind that your electrical system’s core won’t fail you when you’re bouncing down a washboard road.

BEP 1001804 Panel: High-Density Circuit Control

If the Blue Sea 8080 is the standard, the BEP 1001804 is the high-density version for more complex builds. BEP focuses on modular, space-saving designs, and this panel is a prime example. It packs a main battery switch and positions for six circuit breakers into a footprint that’s barely larger than the 8080.

This is the panel for the builder who needs more dedicated circuits but doesn’t have more wall space. You can run your fridge, water pump, lights, heater fan, and accessory outlets all from one tidy unit, each on its own protected circuit. The ability to manage more circuits from a single location dramatically simplifies troubleshooting.

The tradeoff for this density is that wiring can be a bit tighter behind the panel. You need to be neat and organized with your connections. But for a well-planned system in a tiny home or a feature-rich conversion van, consolidating this much control into one spot is a massive win for both functionality and a clean, professional look.

ASI NDB1-125: Heavy-Duty DIN Rail Protection

Not all integrated switches need to be on a user-facing panel. Some of the most important ones live deep within your electrical cabinet, and for that, industrial DIN rail components are often the best tool for the job. The ASI NDB1-125 is a rotary-handled circuit breaker designed to mount on a standard DIN rail.

This is your workhorse for high-amperage protection. I use these as the main disconnect and breaker between a solar charge controller and the battery bank, or on the line feeding a large inverter. The rotary handle gives you a positive, unmistakable disconnect for servicing your system, and the breaker itself is rated to handle the high currents these devices demand.

While it lacks the multi-source selection of a battery switch, its strength is its focused, robust nature. In a self-reliant system, you want components that are overbuilt and simple. A DIN rail setup with a breaker like this is modular, easy to reconfigure, and uses parts designed for 24/7 industrial use. It’s not pretty, but it is profoundly reliable.

Blue Sea Systems 8280: Master Your AC Sources

Managing DC power is one thing, but safely handling AC power is another level of critical. A self-reliant system often has multiple AC sources—shore power from a campground, an inverter running off your batteries, or a portable generator. The Blue Sea 8280 is an AC rotary source selector with integrated main breakers, and it is the correct way to manage these sources.

Its most important feature is that it’s a break-before-make switch. This means when you turn the knob from "Shore" to "Inverter," it completely disconnects from the shore power circuit before it engages the inverter circuit. This mechanically prevents you from ever back-feeding your inverter into the grid or connecting two live AC sources, an action that would instantly destroy your equipment and create a serious safety hazard.

This single device replaces a complex and dangerous web of transfer switches, separate breaker panels, and potential user error. It provides a clear, single point of control: "Where is my AC power coming from?" It protects the source you’ve selected and ensures you can’t make a catastrophic mistake. For any build with an inverter and shore power, a switch like this is not optional; it’s essential.

c3controls 330: A Robust Fused Disconnect

For the absolute highest level of safety and reliability, especially for your main system disconnect, sometimes you want to step away from resettable breakers and embrace the simplicity of a fused disconnect. The c3controls Series 330 is an industrial-grade rotary disconnect switch that holds high-rupture-capacity fuses inside its housing.

When you turn the handle to OFF, you are physically separating a set of copper contacts, creating an air gap that power cannot cross. It’s a foolproof way to de-energize your system for maintenance. The fuses inside (typically Class CC or Midget fuses) are designed to safely interrupt tens of thousands of amps of fault current, far more than a standard breaker. This is the kind of protection you want between a powerful lithium battery bank and the rest of your system.

The obvious tradeoff is that if a fuse blows, you have to replace it. You can’t just flip a switch. But for a main fuse that should only blow in a true emergency, this is a feature, not a bug. It forces you to stop and investigate why it blew. For protecting your most expensive components and ensuring safety, the rugged, simple, and powerful nature of a fused disconnect is hard to beat.

Sea-Dog 422520-1: Compact and Fused Switching

Sometimes, you just need a simple, effective, and space-saving solution for managing two batteries. The Sea-Dog 422520-1 is a perfect example of a compact rotary switch that integrates fusing directly into its design. It’s a classic four-position battery selector switch (OFF/1/2/BOTH) with two heavy-duty studs on the back for mounting a single ANL-style fuse.

This setup is ideal for a simple van or small boat with a starting battery and a house battery. The rotary switch lets you choose which battery you’re drawing from or combine them for an emergency engine start. By mounting the main system fuse directly on the switch, you protect the entire downstream system right at the source, eliminating the need for a separate, bulky fuse holder.

This approach embodies the self-reliant ethos: it’s simple, it’s robust, and it combines functions to reduce clutter and potential points of failure. You lose the convenience of a resettable breaker, but you gain a nearly bulletproof, corrosion-resistant master control switch for your dual-battery system that costs less and takes up minimal space. It’s a smart, practical choice for smaller, more streamlined builds.

Ultimately, building a resilient electrical system is about creating layers of control and safety. By integrating your main switches with your primary circuit protection, you eliminate complexity, save space, and build a system that’s easier to understand and troubleshoot in the field. Whether you choose a resettable breaker panel or a simple fused disconnect, making this combination a core part of your design is one of the most effective steps you can take toward true electrical independence.
