7 Best Low Profile Water Pressure Gauges That Maximize Every Inch

You’ve backed into the perfect campsite, but when you open your RV’s utility bay, you’re reminded of the puzzle. Hoses, filters, and connectors are crammed into a space that was clearly an afterthought. A standard water pressure gauge sticks out like a sore thumb, impossible to read and a magnet for scraped knuckles. This isn’t just an annoyance; it’s a barrier to protecting your rig’s sensitive plumbing.

Disclosure: As an Amazon Associate, this site earns from qualifying purchases. Thank you!

Why Compact Water Gauges Are Crucial for RVs

That tiny, crowded utility compartment is prime real estate. Every component you add has to justify its footprint, and a bulky, top-reading water pressure gauge often fails the test. It can block access to other valves, prevent the compartment door from closing properly, or force your water hose into an awkward, stress-inducing bend. This is where low-profile and right-angle designs become essential.

A water pressure gauge isn’t optional gear; it’s your plumbing’s first line of defense. Campgrounds are notorious for wildly fluctuating water pressure, with some sites delivering pressure spikes well over 100 PSI. Your RV’s PEX tubing and plastic fittings are typically rated for 40-50 PSI. Connecting without a regulator and a gauge to verify its function is a gamble that can lead to burst lines, water damage, and a trip-ending disaster.

The solution is a gauge designed for tight spaces. A right-angle or "low profile" gauge orients the dial parallel to the hose instead of perpendicular to it. This seemingly small change is a game-changer. It allows you to see your pressure reading at a glance without contorting your body, and most importantly, it fits. It transforms a frustrating connection process into a simple, safe, and repeatable task.

Camco 40055: A Classic Right-Angle Design

The Camco 40055 is one of the most common sights in any RV park for a good reason. It’s the definition of a simple, effective solution. Its entire design is built around a 90-degree bend that places the easy-to-read dial flat against the spigot or your regulator, instantly solving the clearance problem.

This isn’t a fancy, feature-packed tool. It’s a straightforward brass instrument that tells you one thing: the water pressure entering your system. You attach it directly to the campground spigot to get an initial reading, then attach your regulator and hose. For most RVers, its color-coded dial—indicating low, normal, and high pressure zones—is all the information they need to confirm the water is safe for their rig. It’s affordable, reliable, and widely available.

The tradeoff for its simplicity and cost is a lack of advanced features. The gauge is not liquid-filled, so the needle can sometimes flutter with pressure fluctuations, though it’s rarely an issue for getting a static reading. It’s a purpose-built tool that does its one job well, making it a perfect starting point or a reliable backup for any RVer’s toolkit.

Valterra A01-1122VP: Regulator & Gauge Combo

Efficiency in a small space is about reducing complexity, and that’s exactly what the Valterra combo unit does. By integrating a high-flow water regulator directly with a pressure gauge, it eliminates an entire component and a potential leak point from your setup. You get protection and information in a single, compact package.

The key benefit here is that the gauge shows you the regulated pressure—the pressure actually entering your RV’s plumbing. This is the number that truly matters. With separate components, you have to trust that your regulator is working; with the Valterra, you can see it in real-time. This integrated design is inherently more space-efficient than screwing a gauge, a regulator, and a hose together in a cramped compartment.

This all-in-one approach is ideal for RVers who value simplicity and reliability. There’s less to pack, less to lose, and less to assemble at every new site. While it may not offer the adjustability of more expensive regulators, its pre-set safe pressure and compact form factor make it a powerful, space-saving tool for worry-free water hookups.

Renator M11-0660R: Durable Lead-Free Option

When you live with your water system day in and day out, the quality of its components starts to matter a lot more. The Renator regulator and gauge combo stands out by focusing on build quality and material safety. Its most notable feature is its lead-free brass construction, which meets standards for drinking water safety and provides peace of mind.

This isn’t just about a label; you can feel the difference. The unit is heavy, the threads are clean, and the included gauge is often liquid-filled for enhanced durability and readability. This is the kind of gear you buy when you’re tired of replacing cheaper plastic or brass-plated parts every other season. It’s built to withstand the constant connecting and disconnecting of a life on the move.

The Renator is for the discerning RVer who sees their equipment as a long-term investment. It costs more than basic models, but you’re paying for longevity, safer materials, and often, the ability to adjust the output pressure. If you’re a full-timer or simply someone who believes in buying it once and buying it right, this is a top-tier, space-conscious option.

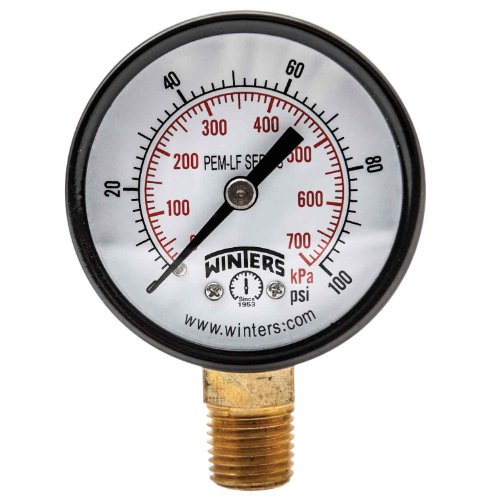

Winters PEM Series: For Unmatched Accuracy

Sometimes, "good enough" isn’t good enough. If you’re chasing a persistent low-flow issue or just want to know exactly what’s happening in your system, an industrial-grade gauge like those in the Winters PEM series is the answer. These aren’t marketed as RV accessories; they are precision instruments used in commercial and industrial settings.

The critical difference is accuracy. A standard RV gauge might have an accuracy of +/- 3-5%, which is fine for general safety. A Winters gauge, however, often adheres to a higher ASME standard, giving you a much more precise reading. This level of detail can help you determine if you’re losing pressure across your filter system or if your pump is truly performing to spec.

To make it low-profile, you simply buy a center-back mount version and pair it with a 90-degree brass elbow from any hardware store. This DIY approach gives you ultimate control over the final orientation and fit. It’s a small extra step, but for the RVer who treats their rig like a system to be optimized, the data and reliability are well worth it.

Measureman 2.5-Inch: Liquid-Filled Durability

The inside of an RV utility bay is a high-vibration environment. Water pumps cycle on and off, and road travel takes its toll. A standard dry gauge’s needle can vibrate or "flutter," making it hard to read and causing premature wear on its delicate internal mechanism. The Measureman liquid-filled gauge solves this problem elegantly.

The gauge face is filled with glycerin or silicone oil. This liquid serves two purposes: it dampens vibrations, keeping the needle steady for an easy, accurate reading, and it lubricates the internal gears, significantly extending the gauge’s lifespan. This makes it exceptionally well-suited for the rugged demands of RV life. You can mount it right after your water pump and get a stable reading every time.

While the 2.5-inch dial is larger than ultra-compact models, it offers superior readability. Paired with a common NPT brass elbow, a back-mounted Measureman gauge becomes a robust, low-profile, and highly functional instrument. It represents a perfect balance of durability, readability, and space-conscious installation.

Anderson Metals 56121: Ultra-Compact Brass Gauge

In some builds, especially van conversions and small truck campers, every single millimeter is accounted for. This is where an ultra-compact gauge like the Anderson Metals 56121 shines. With a dial face often just 1.5 inches across, it’s designed to provide a critical pressure reading in the most constrained spaces imaginable.

Think of monitoring pressure inside a cabinet, right off a small accumulator tank, or tucked into a manifold where a larger gauge would be impossible. Its purpose isn’t to give you a detailed reading from ten feet away. Its purpose is to fit where nothing else will, providing a quick, at-a-glance confirmation that the system is pressurized correctly and safely.

The tradeoff is obvious: readability. The small numbers and compact dial require you to be up close to read them accurately. But when the alternative is no gauge at all, this tiny brass workhorse is an invaluable tool for system diagnostics and safety in the tightest of builds.

Hourleey Regulator: An All-in-One Budget Kit

For someone just starting their RV journey, outfitting a rig can be an overwhelming and expensive process. The Hourleey regulator and gauge kit addresses this head-on by offering a complete, affordable package. It typically includes an adjustable, lead-free brass regulator, a pre-installed gauge, and an inlet filter screen—everything you need to safely connect to city water.

The value proposition is undeniable. You get a full solution in one box without having to research and source multiple compatible parts. The gauge is usually mounted directly on top of the regulator, which, while not a true right-angle design, creates a single, consolidated unit that is often more compact than a piecemeal assembly. The ability to adjust the outgoing pressure with a simple screwdriver is a significant feature at this price point.

This is the perfect starter kit. It provides all the necessary functions and safety features without a large financial commitment. While a full-time RVer might eventually upgrade to a model with higher flow rates or more robust construction, the Hourleey kit is a fantastic, space-efficient way to get protected and on the road.

Ultimately, the best water pressure gauge isn’t the most expensive or the most accurate—it’s the one that fits your rig and your needs. Choosing a low-profile model is a small, inexpensive upgrade that eliminates a common point of frustration at every campsite. It’s one of those little details that makes life in a small space simpler, safer, and more enjoyable.
