7 Best High-Amperage Busbars For Off Grid RV Power That Nomads Swear By

I’ve seen it a hundred times. You open an RV’s electrical cabinet and find a tangled mess of wires stacked five-deep on a single battery terminal. This isn’t just messy; it’s a fire hazard and a nightmare to troubleshoot on the side of the road. The humble busbar is the single most important component for taming that chaos. It’s the key to building a safe, reliable, and organized off-grid power system that won’t let you down.

Disclosure: As an Amazon Associate, this site earns from qualifying purchases. Thank you!

Why Busbars Are Critical for RV Power Systems

A busbar is essentially a heavy-duty power strip for your DC electrical system. It’s a conductive metal bar with multiple studs or screws that acts as a central collection and distribution point. You run one large cable from your battery to the busbar, and then all your individual loads—inverter, solar charge controller, fuse block—get their own clean connection point.

This approach solves several critical problems. First, it ensures every component gets a solid, low-resistance connection, which is vital for high-draw appliances like inverters. Stacking ring terminals on a battery post creates resistance, which generates heat and can starve your electronics of the power they need. Second, it makes your system infinitely easier to work on. Need to isolate your solar charger? Just undo one nut, instead of disassembling a precarious tower of wires.

Many builders, especially on their first rig, try to save a few bucks by skipping proper busbars. They’ll daisy-chain connections or cram everything onto the battery terminals. This is a mistake. A well-planned system with properly sized busbars is the foundation of a reliable off-grid setup. It’s a small investment that pays massive dividends in safety and sanity.

Blue Sea Systems M10: The Nomad’s Top Choice

There’s a reason you see this busbar in nearly every high-end van build. The Blue Sea Systems 250A or 600A busbar with M10 (3/8") studs is the unofficial industry standard for off-grid power systems. It perfectly balances heavy-duty capacity with practical flexibility.

Its design is simple and brilliant. It features one or two large M10 studs, which are perfect for the massive 2/0 or 4/0 cables running to your inverter and from your battery bank. It also includes several smaller screw terminals for all your other circuits, like the solar charge controller, DC-to-DC charger, and main fuse panel. This allows you to consolidate all your main positive or negative connections into one clean, secure location.

The build quality is exceptional, featuring tin-plated copper for maximum conductivity and corrosion resistance. It also comes with a sturdy cover that snaps into place, protecting the terminals from accidental shorts. If you want a no-nonsense, reliable solution that will likely outlast your rig, this is the one to get. It’s the definition of "buy once, cry once."

Victron Lynx Distributor: All-in-One Power Hub

The Victron Lynx Distributor is what happens when you take the concept of a busbar and build an entire ecosystem around it. It’s less of a single component and more of an integrated power distribution center. This is the choice for nomads building complex, high-powered systems who value seamless integration and centralized control.

Inside the sleek housing, you’ll find both a positive and a negative busbar. The positive side is designed to hold four MEGA fuses, allowing you to protect each of your main circuits right at the source. An LED light for each fuse even tells you if one has blown, taking the guesswork out of troubleshooting. It’s designed to link up with other Victron Lynx components, like the Lynx Shunt, to create an incredibly tidy and professional-looking power system.

Of course, this level of integration comes at a cost. The Lynx Distributor is significantly more expensive and takes up more space than a traditional busbar. But for a large system with multiple charge sources and heavy loads, the safety and organizational benefits are undeniable. It transforms your electrical cabinet from a collection of parts into a cohesive, intelligent system.

Blue Sea Systems 2104: Heavy-Duty Connections

Sometimes you don’t need a bunch of small terminals. You just need to connect several very large cables together. That’s where the Blue Sea Systems 2104 PowerBar comes in. Think of this as the main junction for your system’s electrical arteries.

This busbar features four large 3/8" (M10) studs, each capable of handling the biggest cables in your setup. Its most common use is for consolidating the main connections between a large inverter, a high-output alternator charger, and a multi-battery bank. Instead of trying to stack these massive lugs on a single battery post, you give each one its own dedicated, secure stud on this 600A-rated bar.

You wouldn’t use this to connect your cabin lights or USB ports. This is a specialized tool for managing the flow of serious current. For nomads running 3000W+ inverters or linking multiple lithium batteries in parallel, the 2104 provides a rock-solid connection point that eliminates bottlenecks and ensures maximum power delivery.

Renogy Bus Bar Pair: A Solid Budget-Friendly Pick

Renogy has built its reputation on making solar and off-grid power accessible, and their busbars are no exception. This pair, typically rated for 250A, offers a functional and affordable solution for nomads who need solid performance without the premium price tag of a Blue Sea or Victron system.

The design is familiar and effective, providing a couple of large studs for your main cables and several smaller screw terminals for auxiliary circuits. They come as a pair—one red for positive and one black for negative—which simplifies ordering. They get the job done, providing a clean and organized way to distribute power and create a central grounding point.

Let’s be real: the fit and finish aren’t quite on par with the premium brands. The plastic covers can feel a bit thinner, and the hardware might not have the same robust feel. However, for the vast majority of RV and van builds with moderate power needs, they are perfectly safe and reliable. If you’re building on a budget but still want to do things the right way, the Renogy busbar pair is an excellent choice.

Blue Sea M-Series: Compact and Versatile Design

Not every busbar needs to handle the full might of your battery bank. Often, you just need a small, convenient junction point to clean up wiring in a specific area. The Blue Sea M-Series Mini Bus Bar is the perfect tool for these smaller, localized jobs.

These compact busbars are typically rated for around 100A to 130A and come in various configurations, often with a single larger stud and four or five smaller screw terminals. They are fantastic for creating a sub-distribution point. For example, you can run a single 8-gauge wire to a cabinet and use one of these to distribute power to all the lights, fans, and outlets inside that zone. This is far cleaner than running a dozen small wires all the way back to your main electrical panel.

I often use these as grounding busbars in various locations throughout a build. Placing one under the van’s dashboard to provide a common ground for all the new electronics—cell booster, dash cam, radio—is a classic move. They are inexpensive problem-solvers that help you maintain an organized system, even far from the main power center.

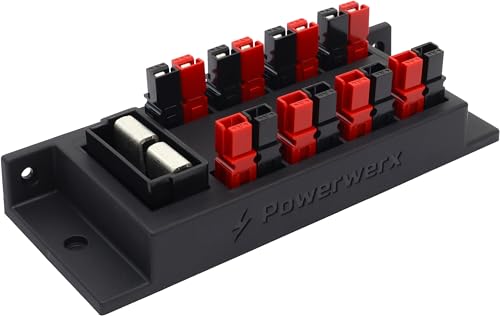

Powerwerx PD-8: Fused Distribution and Busbar

The Powerwerx PD-8 is a clever hybrid that combines a distribution block with a fuse panel. It’s designed for organizing the "house" side of your 12V system—all the smaller circuits that power your lights, fans, water pump, and USB outlets. It streamlines your wiring by eliminating the need for a separate busbar and fuse block for these circuits.

You connect a single positive and negative feed wire to its main terminals. From there, it provides eight fused output circuits protected by standard automotive ATC/ATO fuses. Each circuit has its own screw terminal for both the positive and negative wire, making for an incredibly tidy installation. It’s a clean, all-in-one solution for managing your accessory circuits.

The key thing to understand is its limitation. This is not for high-amperage loads. You would never connect your inverter to this. It’s specifically designed for the multitude of smaller DC loads that make your RV liveable. For that purpose, it’s an elegant and space-saving solution that simplifies a part of the electrical system that often becomes a tangled mess.

Nilight 4-Post Busbar: Affordable and Reliable

If you search for "busbar" on Amazon, you’ll be flooded with options from brands like Nilight. These are the ultra-affordable, no-frills workhorses of the DIY world. While they may not have the brand recognition of Blue Sea, they provide a massive upgrade in safety and organization over no busbar at all.

Typically sold in a red and black pair, these busbars offer a simple layout of four or more studs and a basic plastic cover. The amperage ratings are usually quite respectable, often in the 150A to 250A range, which is more than enough for many simple to moderate RV systems. They provide a solid, functional connection point for a very low price.

Are they as good as the premium options? No. The metal might be nickel-plated brass instead of tin-plated copper, and the plastics feel less durable. But they absolutely work. For a first-time builder or someone with a straightforward system, these busbars represent an incredible value. Just double-check that the stud sizes match your ring terminals, tighten them properly, and they will serve you well.

Ultimately, the best busbar isn’t the most expensive one; it’s the one that correctly fits the scale and complexity of your system. Whether it’s a simple budget-friendly pair or a fully integrated distribution hub, choosing the right one is a foundational step. It’s a small detail that makes a world of difference in the safety, reliability, and serviceability of your off-grid home on wheels.
