6 Secure Stabilizer Mounting Solutions For Off Road Rvs Nomads Swear By

That sickening crunch you hear after navigating a washed-out forest road isn’t a rock hitting your axle; it’s your stabilizer jack, bent sideways and hanging on by a thread. Standard RV stabilizer mounts are built for campgrounds, not for the constant vibration, torsion, and impacts of backcountry travel. For nomads who push the limits of their rigs, upgrading these weak points isn’t a luxury—it’s essential for survival and sanity.

Disclosure: As an Amazon Associate, this site earns from qualifying purchases. Thank you!

Why Stock Stabilizer Mounts Fail Off-Road

Stock stabilizer mounts are the first casualty of rough terrain. They are typically made from thin-gauge steel, tack-welded to the lightest part of the I-beam frame. This design works perfectly fine when lowering the jack on a flat, level concrete pad.

The problem starts when the entire trailer frame is twisting and flexing over uneven ground. Those small welds are subjected to immense shearing and torsional forces they were never designed to handle. A single hard jolt from a pothole or a dragging exit over a steep wash can be enough to fatigue the metal, pop a weld, or bend the entire bracket out of shape.

It’s not just about big impacts, either. Thousands of miles of vibration on corrugated dirt roads slowly work the mounting bolts loose or crystallize the metal around the welds, leading to sudden failure. The core issue is that stock mounts are designed for static vertical loads, not the dynamic, multi-directional forces of off-road travel.

Custom Welded Gusseted Brackets for Max Strength

When you absolutely cannot afford a failure, custom fabrication is the answer. A gusseted bracket is the gold standard for mounting anything critical to an off-road frame. A gusset is simply a triangular piece of steel welded in to brace the angle between the frame and the mounting bracket, dramatically increasing its resistance to side-loading.

A skilled fabricator will build new brackets from thick plate steel, often 1/4-inch or more. They will then fully weld them to the main frame rails, adding gussets to triangulate the load. This creates a mounting point that is effectively part of the frame itself, capable of withstanding severe vibration and direct impacts.

This is not a DIY job for most people and it’s a permanent modification. You’re committing to that jack location. However, for a full-time overlander building a rig for remote exploration, the peace of mind that comes from knowing your stabilizers won’t be ripped off in the middle of nowhere is worth the investment in professional fabrication.

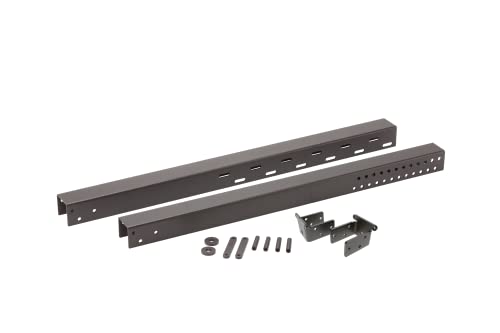

MORryde X-Factor Crossmember Integration

The MORryde X-Factor is a brilliant piece of engineering that solves two problems at once. Its primary job is to reinforce the suspension hangers on your trailer’s frame, which are another notorious weak point. It’s a heavy-duty crossmember that bolts between the opposing frame rails, preventing the I-beams from flexing inward or outward under stress.

Because the X-Factor creates an incredibly strong, rigid bridge right where you need it most, it also serves as an ideal mounting platform for stabilizer jacks. You’re no longer relying on a thin flange of the I-beam. Instead, you’re mounting to a robust, purpose-built piece of hardware that is designed to handle immense stress.

This is a bolt-on solution, making it accessible to those who don’t have welding capabilities. By installing an X-Factor crossmember, you’re significantly upgrading your suspension’s durability and getting a rock-solid foundation for your stabilizers. It’s a strategic upgrade that strengthens the core of your rig’s chassis.

Lippert PSX1 Power Stabilizer Mounting System

While often seen as a convenience feature, the design of power stabilizers like the Lippert PSX1 inherently creates a more robust mounting system. Unlike individual scissor jacks that can wobble independently, these systems are a single, integrated unit. The bar connecting the two jack legs and housing the motor provides significant cross-axle rigidity.

The mounting plates on these units are also typically larger and thicker than those on cheap manual jacks. They are designed to handle the torque from the electric motor, which means they distribute the load over a wider area of the frame. This reduces the stress on any single point.

For the off-road traveler, this means the entire unit is less susceptible to twisting forces. When one leg drops into a dip, the connecting bar and motor housing help keep the whole assembly aligned. While still vulnerable to direct hits, the overall structure is a significant step up from the flimsy, independent scissor jacks found on most trailers.

Torklift Frame Mounts: A Foundation for Stability

Torklift has built its reputation on creating products that anchor directly to the vehicle’s frame, and this philosophy is key to off-road stability. While they are best known for truck camper tie-downs and the GlowStep Revolution, their approach to frame-mounted strength can be applied to stabilizers. The principle is to bypass weak outriggers and body components entirely.

Think of their StableLoad suspension stabilizers or their SuperHitch. Both products bolt directly into the strongest, most substantial parts of the chassis. You can adopt this same method for your stabilizer jacks by fabricating or sourcing brackets that allow a direct, multi-bolt connection to the main frame rail.

This approach ensures the jack is anchored to the vehicle’s backbone. It’s not hanging off a thin piece of metal an inch away from the I-beam; it’s an integral part of the structure. This provides a far more stable platform and dramatically reduces the chance of the mount bending or tearing away under stress.

Integrated Rock Slider Jack Mounting Points

For the most serious off-road trailers and expedition rigs, rock sliders are non-negotiable protection. These heavy-duty steel tubes are welded or bolted directly to the frame and are designed to support the entire weight of the vehicle against rocks and obstacles. This makes them the ultimate mounting point for a stabilizer or jack.

Many custom fabricators will integrate Hi-Lift jack points directly into the sliders. The same concept can be used to create dedicated mounting tabs for scissor or telescoping stabilizers. By welding a stout mounting plate directly onto the slider’s structure, you are leveraging the strongest component you’ve added to your rig.

This is an elegant, multi-purpose solution. You get critical armor for your trailer’s vulnerable sidewalls and a bombproof place to mount your jacks. It keeps the jacks tucked up high and protected, and ensures that any force exerted on them is transferred directly into the frame through the slider’s robust connection.

BAL Lock-Arm Stabilizing Bar Mounting System

Sometimes the problem isn’t the vertical mount itself, but the inherent wobble of the scissor jack design. The BAL Lock-Arm is a clever aftermarket solution that addresses this specific issue. It doesn’t replace your jack or its primary mount; it braces it.

The system works by adding a telescoping steel bar that connects the jack’s baseplate to the trailer frame. Once the jack is lowered, you tighten a handle on the Lock-Arm, which effectively creates a rigid triangle. This simple triangulation eliminates almost all of the front-to-back and side-to-side shaking that makes a trailer feel unstable.

This is an excellent, cost-effective, and easy-to-install upgrade for someone whose primary mounts are still in good shape but who wants to add significant stability. For an off-road rig, these bars help lock the deployed jacks in place, preventing the constant minor shifts from wind or movement inside that can stress the main mounting bolts over time.

Choosing Your Mount: Weld vs. Bolt-On Factors

The decision between a welded or a bolt-on solution comes down to your rig, your skills, and your mission. There is no single right answer, only a series of tradeoffs.

Weld-On Solutions are the pinnacle of strength and permanence.

• Pros: Unmatched durability, custom-fit to your specific needs, becomes an integral part of the frame.
• Cons: Requires a professional welder, is a permanent modification (can affect resale or warranty), and offers zero adjustability later.

Bolt-On Solutions offer flexibility and accessibility.

• Pros: Can be installed with basic hand tools, is removable or adjustable, and doesn’t permanently alter the frame.
• Cons: Can loosen over time and requires periodic re-torquing, may not be as strong as a fully welded and gusseted custom bracket.

Ultimately, your choice should reflect how you use your RV. If you’re building a "forever rig" for hardcore overland travel, welding is the superior path. If you’re upgrading a factory trailer for more moderate backcountry trips and want to preserve your warranty or the ability to make changes later, a high-quality bolt-on system like the MORryde X-Factor is a fantastic and reliable choice.

Don’t wait for a failure on a remote trail to address this crucial weak point. A secure stabilizer mount is foundational to a capable off-road rig, providing not just a stable living space at camp, but the confidence that your equipment will arrive in one piece. Choose the solution that matches your build, and you’ll sleep better both on the road and at your destination.
