6 Best Well Pump Supports For Easy Installation In Tiny Homes

Turning on a faucet in your tiny home for the first time is a moment of truth. It’s the culmination of planning, plumbing, and a whole lot of patience. The steady stream of water you’re hoping for depends entirely on one component: your water pump. This small, often-overlooked device is the heart of your plumbing system, the critical link that makes self-reliance possible. Choosing the right one is less about specs and more about understanding how you plan to live.

Disclosure: As an Amazon Associate, this site earns from qualifying purchases. Thank you!

Key Factors in Tiny Home Off-Grid Water Pumps

The first decision you’ll face is power: 12-volt DC or 120-volt AC. For nearly all off-grid tiny homes running on solar and batteries, 12V DC is the non-negotiable standard. These pumps wire directly to your battery bank, minimizing energy loss and complexity. AC pumps require an inverter to run, which constantly draws power and adds another potential point of failure to your system.

Next, consider flow rate, measured in Gallons Per Minute (GPM), and pressure, measured in PSI. It’s easy to get caught up in chasing high numbers, but a tiny home doesn’t need the same flow as a suburban house. A 3.0 GPM pump is more than enough for a satisfying, water-efficient shower and running the kitchen sink. Pressure, typically between 40-60 PSI, is what makes the water feel strong and steady rather than weak and dribbling.

Finally, where is your water coming from? Most tiny homes use an onboard freshwater holding tank, which calls for a self-priming diaphragm pump. If you’re lucky enough to have a well, you’ll need a different tool entirely—either a submersible pump for deep wells or a jet pump for shallow ones. Matching the pump type to your water source is the most fundamental step.

Shurflo 4008: The RV Industry Standard Pump

There’s a reason you see the Shurflo 4008 in countless RVs, vans, and tiny homes. It’s the reliable, easy-to-source workhorse of the 12V water pump world. This is a diaphragm pump, meaning it’s self-priming and can run dry for short periods without damage—a crucial feature for off-grid life where tanks can unexpectedly run empty.

With a flow rate of 3.0 GPM and a factory-set pressure switch at 55 PSI, the 4008 provides performance that feels familiar and comfortable. It’s enough to run a low-flow showerhead and a sink simultaneously without a significant drop in pressure. It isn’t silent—you’ll hear its rhythmic thumping when it runs—but it’s a sound that many tiny dwellers come to associate with the simple luxury of running water.

Installation is about as simple as it gets. You have a positive and negative wire for your 12V system and threaded ports for your PEX or flexible plumbing lines. Its built-in pressure switch is the magic: open a faucet, the pressure drops, and the pump kicks on. Close it, the pressure builds, and the pump shuts off. For most tiny homes using a freshwater tank, this pump is the smartest place to start.

Seaflo 55-Series: High-Flow for Off-Grid Use

If the Shurflo 4008 is the reliable sedan, the Seaflo 55-Series is the V8 truck. It’s built for situations where you need more water, faster. This pump is for the tiny home dweller who doesn’t want to compromise on shower pressure or wants to run a washing machine without starving the rest of the system.

The headline feature here is its 5.5 GPM flow rate. This is a massive leap from the 3.0 GPM standard and delivers a truly residential-feeling water flow. It still operates on 12V DC, making it a powerful and viable option for robust off-grid systems. It’s a beast of a pump that can handle the demands of a small family or more complex plumbing setups.

Of course, there are no free lunches. That extra performance comes with a higher amperage draw, meaning it will consume more of your precious battery power with every use. It’s also physically larger and noticeably louder than smaller pumps. The Seaflo 55-Series is an excellent choice, but only if your power system is robust enough to support it and you truly need the extra flow.

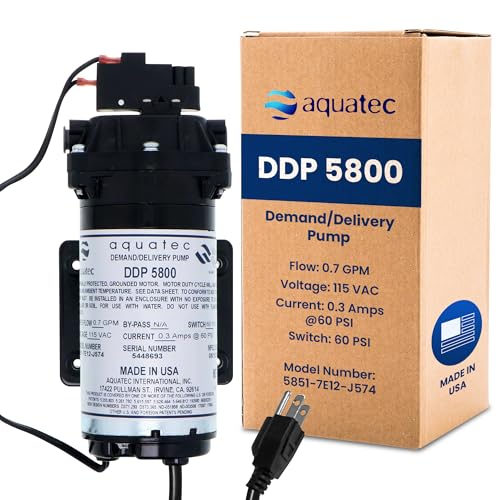

Aquatec 5800: A Quiet and Reliable Option

In a space that’s often less than 300 square feet, every sound is amplified. The sudden, jarring kick of a standard water pump can be a real annoyance, especially at night. The Aquatec 5800 series directly addresses this problem, earning its reputation as the quiet, premium option for tiny home water systems.

The secret is its variable-speed motor. Instead of slamming on at full power, it gently ramps up to meet the demand, resulting in a much smoother and quieter operation. This eliminates the harsh "thump-thump" and water hammer that plagues many systems. It delivers steady pressure and flow comparable to the Shurflo, but with a level of refinement you can hear—or rather, can’t hear.

This quiet performance comes at a higher price. You are essentially paying a premium for tranquility. But for anyone who works from their tiny home or is sensitive to noise, that extra cost can be a worthwhile investment in daily comfort. If your budget allows, the Aquatec 5800 provides a significant quality-of-life upgrade.

RPS Solar Pump Kits for True Water Independence

Moving beyond onboard tanks, we get to the ultimate source of self-reliance: your own well. For this, you need a specialized well pump, and RPS (Rural Power Systems) offers some of the most accessible solar-powered kits on the market. This isn’t just a pump; it’s a complete system for pulling water directly from the earth using only the sun.

An RPS kit typically includes a high-efficiency DC submersible pump, solar panels, and a smart controller that manages everything. The pump goes down into your well casing, and the panels power it directly, often filling a large cistern or holding tank during the day. This creates a water buffer that your smaller 12V house pump can then draw from.

This is a significant step up in complexity and cost from a simple tank-and-pump setup. It requires a drilled well and a more involved installation process. However, it provides a level of water security that is unmatched. You are no longer trucking water in; you are sourcing it sustainably on your own land, representing a major milestone in off-grid independence.

Vevor Jet Pump: A Budget Shallow Well Choice

Not all wells require an expensive submersible pump. If you have a shallow well—generally 25 feet deep or less—a jet pump is a highly practical and budget-friendly alternative. The key difference is that the pump itself stays above ground, making it far easier to access for maintenance and repairs.

Vevor has become a popular name for affordable homesteading equipment, and their shallow well jet pumps are no exception. These are typically 120V AC pumps, so they are best suited for tiny homes with a robust inverter system or access to grid power. They work by creating suction to pull water up from the well point.

The tradeoff for the low cost and easy access is noise and efficiency. Jet pumps can be quite loud, and running them on an inverter will consume a fair bit of power. But the value proposition is hard to ignore. For a tiny home on a foundation with a shallow well, a Vevor jet pump is one of the most cost-effective ways to get water flowing.

Wayne PC4: Versatile Water Transfer Solution

Sometimes the biggest challenge isn’t pressurizing water, but simply moving it. The Wayne PC4 is a transfer pump, a specialized tool designed to move large volumes of water from one place to another. It’s not the pump for your shower, but it might be the pump that fills the tank that feeds your shower pump.

Imagine this scenario: your tiny home’s 40-gallon tank is empty, and your water source is a 250-gallon tote 100 feet away. The PC4, connected to a couple of garden hoses, can transfer that water quickly and effortlessly. It’s perfect for filling your main tank from rain barrels, a nearby stream (with proper filtration), or large transport containers.

This is a 120V AC utility pump, so you’ll need shore power or an inverter to run it. It’s not a permanent part of your plumbing, but rather a powerful tool you pull out when needed. Having a reliable transfer pump like the PC4 in your toolkit can solve countless logistical headaches and dramatically simplifies the task of managing your off-grid water supply.

Installing Your Pump with an Accumulator Tank

No matter which pressure pump you choose, there is one accessory that is absolutely essential: an accumulator tank. This is a small, often overlooked canister that installs on the outlet side of your pump. Inside is a rubber bladder pre-charged with air, which acts as a pressure cushion for your entire water system.

Without an accumulator, your pump has to turn on every single time you crack a faucet, even for a split second. This constant on-off action, called cycling, is what wears out the pump’s pressure switch and motor prematurely. The accumulator tank stores a small amount of pressurized water, so you can wash your hands or fill a glass of water using that stored pressure without the pump needing to run at all.

This simple device provides three huge benefits. It dramatically reduces pump cycling, extending the life of your pump. It smooths out the water flow, eliminating the annoying pulsing effect common with diaphragm pumps. And by reducing pump run time, it saves precious battery power. Installing an accumulator tank is the single best thing you can do to improve the performance and longevity of your tiny home water system. It’s not an optional upgrade; it’s a required component for a well-built system.

Your water pump is the quiet, hardworking heart of your tiny home. The best choice isn’t the most expensive or the most powerful, but the one that aligns with your reality. Consider your power supply, your water source, and your daily needs to find the right fit. Get this decision right, and you’ll be rewarded with the quiet confidence that comes from true and reliable self-sufficiency.
